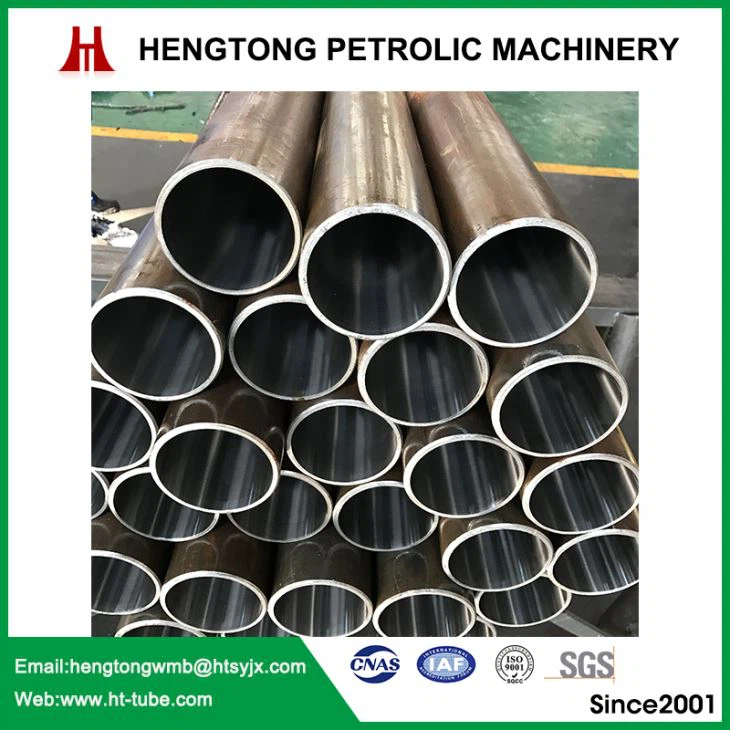

Pneumatic Honed Tube Introduction
Honed Tubes are presicion tubes with smooth inside, they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009 , EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose.
Pneumatic Honed Tubes technical parameters and Details
Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.
Original: Jiangsu, China
Certification: ISO9001.
Material: SAE1020, 20#, ST45, CK45, ST52, E355
Payment term: TT, LC
Delivery date: usually 20 to 40 days.
Packing: packed in bundle, oiled inside, with caps on both ends.
Market: Middle East/ Africa/Asia/South America/Europe/North America
MOQ: Depends on exact size and material.
Mechanical Properties:
Final Supply | Cold finished | Cold drawn and stress-relieved （BK+S or + SR） | Hardness HB | |||
Parameters | T.S | Elongation | T.S | Y.S | Elongation | |
20# (A106B, ST45, E255) | ≧550 | ≧8 | ≧520 | ≧375 | ≧12 | 175 |
45#(CK45) | ≧650 | ≧5 | / | / | / | 207 |
Q345B(ST52, E355) | ≧640 | ≧5 | ≧600 | ≧520 | ≧15 | 190 |
25Mn | ≧640 | ≧5 | ≧600 | ≧510 | ≧15 | 195 |
27SiMn | ≧840 | ≧5 | ≧800 | ≧720 | ≧10 | 230 |
Production process
Raw material – annealing for material of 45#, 27SiMn, 25Mn – Acid cleaning – parkerizing & Saponifying – cold drawn – leveling – saw off bad section – stress relieving – leveling –honing or skiving – inspection – oiled plated - packing
Quality control
1. We only buy raw material from famous tube factory, and Checking raw material quality before production.
2. We check the tube ID tolerance, OD tolerance and surface after cold drawn one by one.
3. We inspect the honed tube inside tolerance and surface again one by one after honing or skiving.
