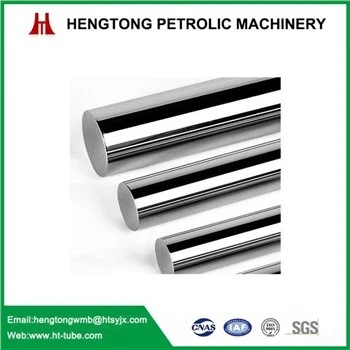

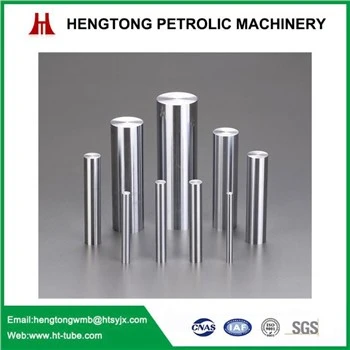

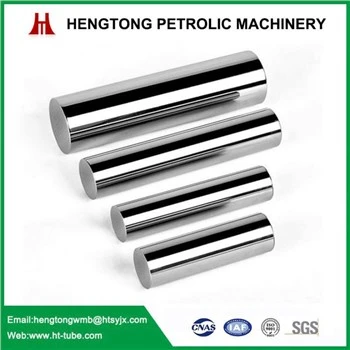

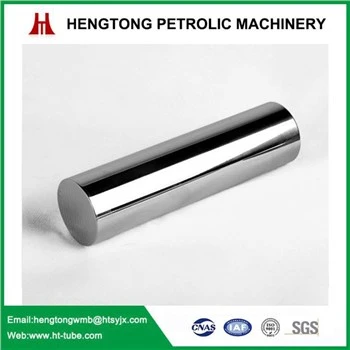

Hengtong Chrome Plated Bar: Superior Performance, Driving Core
Top-tier Surface Treatment Solutions for Demanding Applications
In precision manufacturing and heavy industry, the reliability of every component is crucial to the success of the entire system. Leveraging its extensive expertise in precision tubing and high-end materials, Wuxi Hengtong combines superior cold-drawing technology with advanced surface treatment processes to provide you with precision chrome-plated bar (hard chrome bar) that delivers exceptional performance and impeccable durability.
We understand that a bar is more than just a piece of metal; it's the backbone of your equipment, serving as the core transmission and load-bearing components for hydraulic cylinders, injection molding machines, die-casting machines, and various linear motion systems. Hengtong chrome-plated bar is dedicated to improving your equipment's performance, extending its service life, and minimizing downtime.
Unparalleled Surface Hardness and Superior Wear Resistance
Using an advanced electroplating process, we deposit a thick, uniform, and dense layer of hard chrome onto a precision-machined substrate.
- Extremely High Surface Hardness: The coating hardness can reach HV 800-1000 (approximately HRC 65-72), significantly exceeding that of ordinary steel and effectively resisting abrasive, adhesive, and corrosive wear.
- Extremely Low Coefficient of Friction: The mirror-smooth chrome surface significantly reduces friction with seals, bearings, and other supporting components, ensuring smooth operation and minimizing power loss and heat generation.
Excellent Corrosion Resistance and Long Life
Hengtong chrome-plated rods perform exceptionally well even in wet conditions, contact with chemical coolants, and other harsh operating conditions.
- Strong Protective Layer: The chrome layer itself is inherently inert, effectively resisting attack from water, air, various acids, alkalis, and chemical solvents, protecting the internal substrate from corrosion.
- Extended Equipment Lifecycle: Excellent corrosion and wear resistance ensures your hydraulic cylinder or actuator maintains high performance over extended periods, significantly reducing replacement and maintenance costs.
Precise Dimensional Tolerances and Perfect Surface Finish
Rooted in our "precision tube manufacturing" DNA, every chrome-plated rod undergoes rigorous quality control.
- Precision Base Tube: We use our own cold-drawn precision tube (±0.05mm tolerance) as the base tube, ensuring straightness and dimensional uniformity.
- Excellent Surface Quality: After plating, the surface finish is ultra-finely ground and polished to Ra ≤ 0.2μm (or even higher), effectively reducing seal wear, eliminating leaks, and ensuring system reliability.
Strong Substrate-Coating Bond
We understand that plating detachment can be catastrophic. Hengtong utilizes proprietary pre-treatment processes and electroplating parameter control.
- Strong Bond: The hard chrome layer forms a strong metallurgical bond with the base metal (typically high-quality carbon steel or alloy steel), preventing peeling and flaking under high pressure, high load, or shock loads.
- Uniform Coating: The entire electroplating process is computer-controlled, ensuring uniform coating thickness across the entire length and circumference (typically 0.02mm-0.05mm or as specified by the customer).
Our Product Capabilities and Specifications
|
Project |
Specifications |
| Base Material | High-quality 45 carbon steel, 40Cr alloy steel, 20 steel, and other custom alloys |
| Standard Diameter | Φ30mm - Φ400mm (customizable based on our cold drawing capabilities) |
| Standard Length | Up to 7 meters (or customizable upon customer request) |
| Coating Thickness | 0.02mm - 0.05mm (standard range), thicker coatings available upon request |
| Surface Hardness | ≥ HV 800 (HRC 65+) |
| Surface Finish | Ra ≤ 0.4μm - Ra ≤ 0.1μm (mirror finish available upon request) |
| Straightness | ≤ 0.3mm/1000mm |
| Coating Adhesion | Passes bending, filing, thermal shock, and other tests without peeling. || Application Standards | Complies with ISO, DIN, ASTM, and customer-specific specifications |
Application Areas: Empowering Global Industry
Hengtong chrome-plated rods are the preferred material for critical equipment in numerous industries:
Hydraulic Systems

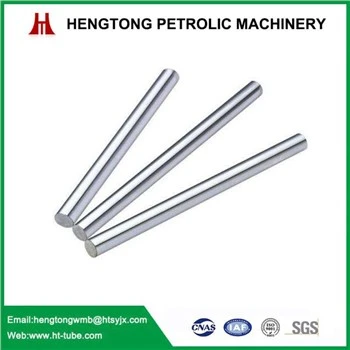

Hydraulic cylinder piston rods, servo cylinder rods, and cylinder rods for heavy-duty construction machinery (excavators and cranes).
Injection Molding and Die-Casting Machinery
Injection molding machine rods, die-casting machine piston rods, and tie rods.
Automation and Robotics
Linear guides, actuator guide rods, and precision linear motion components.
Metallurgy and Mining Equipment
Metallurgical cylinders, coal mine hydraulic support piston rods, and heavy equipment guide shafts.
Papermaking and Printing Machinery
Various rollers and pressurizing mechanism components.
Food Processing and Packaging Machinery
Precision shafts requiring corrosion resistance and easy cleaning.
Choosing us means you'll gain value beyond the product itself:
1. Vertically Integrated Manufacturing Capabilities: From cold drawing and honing of raw materials (seamless tubes) to precision electroplating, we independently control the entire process, ensuring quality traceability and cost optimization.
2. Material Science Expertise: Our deep understanding of materials like ASME alloy steel and duplex stainless steel enables us to recommend the most suitable substrate and coating solutions for your specific application (e.g., high-temperature resistance or corrosion resistance).
3. Strict Quality Assurance System: Every chrome-plated bar undergoes multiple inspections for dimensions, hardness, finish, flaw detection, and adhesion before shipment to ensure zero-defect delivery.
4. Global Trade and Service Network: Located in the economic center of the Yangtze River Delta, we enjoy convenient logistics. With extensive export experience, we can provide timely product supply and technical support to customers around the world.

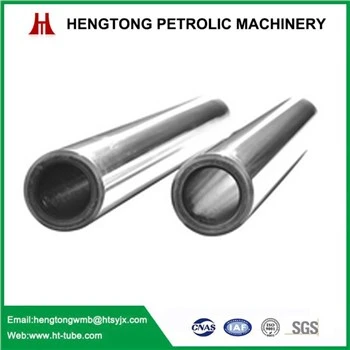

5. Customized Solutions: We offer a comprehensive, one-stop solution for chrome-plated hollow bars, from material selection and sizing to surface treatment, tailored to your drawings or technical specifications.
The trusted core of your equipment.
Whether you're designing the next generation of heavy machinery or replacing critical components in existing equipment, Hengtong precision chrome-plated bars provide the reliability, durability, and performance you need.
