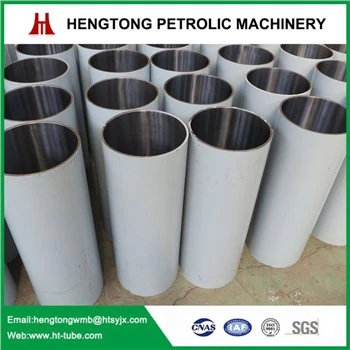

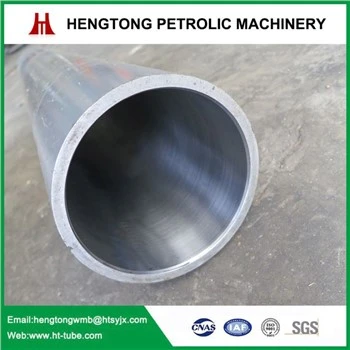

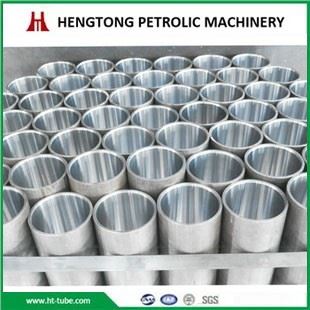

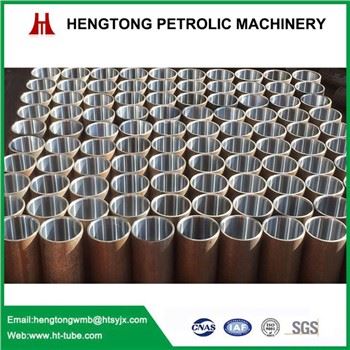

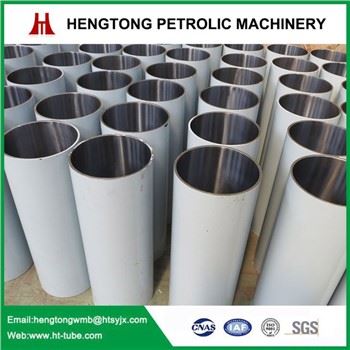

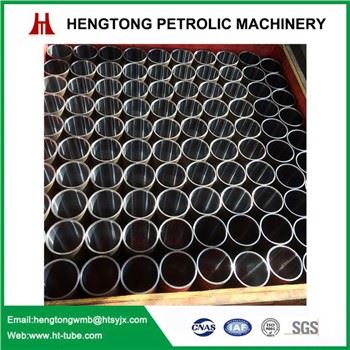

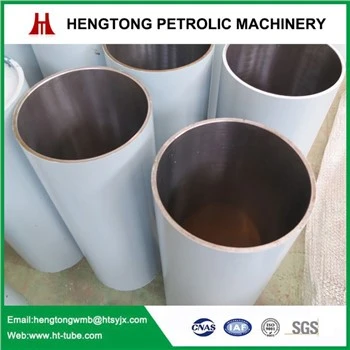

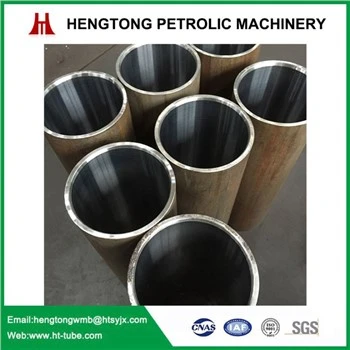

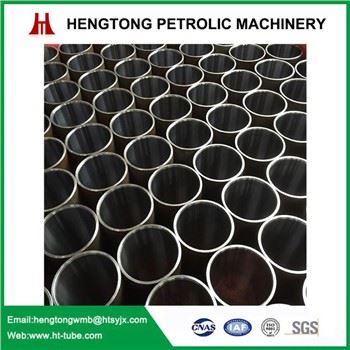

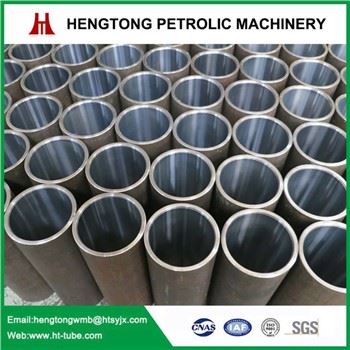

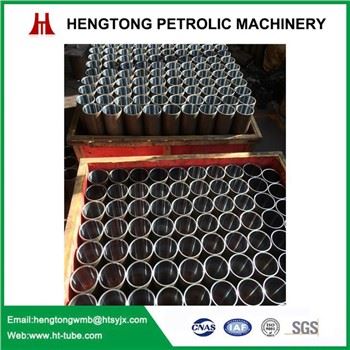

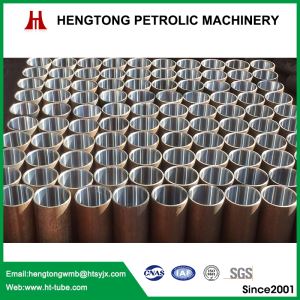

Chrome Plated Honed Tube
Superior Performance, Precision: Hengtong Chrome-Plated Honed Tube
Precision manufacturing from Wuxi Hengtong combines wear resistance, corrosion resistance, and ultra-low friction, creating the core of superior hydraulic and transmission systems.
Why Choose Hengtong Chrome-Plated Honed Tube?
In high-pressure hydraulic systems, heavy-duty construction machinery, and precision transmission applications, the performance of cylinder tubing directly determines the efficiency, reliability, and lifespan of the entire equipment. Hengtong Chrome-Plated Honed Tube is more than just a tube; It represents the pinnacle of our materials science, precision machining, and surface treatment technologies, designed to solve the wear, corrosion, and leakage challenges of your core components.
Strategically located in the Yangtze River Delta economic hub near Taihu Lake, we leverage the Yangtze River Delta's robust supply chain and logistics advantages to efficiently deliver high-quality products to customers worldwide.
Unparalleled Surface Quality:
- Precision Honing Process: Our foundation is high-quality honed tubes (±0.05mm tolerance), which provide near-perfect straightness, roundness, and dimensional consistency. The mirror-smooth inner surface provides the perfect foundation for the coating.
- Micro-crack Chromium Layer: Utilizing an advanced electroplating process, a hard chrome layer rich in a network of microcracks is formed. These microcracks effectively store lubricant, significantly reducing the coefficient of friction, ensuring smooth, slip-free piston rod movement, and significantly extending seal life.
Extreme Wear and Corrosion Resistance:
- High-Hardness Plating: The surface chrome layer achieves a hardness of over HV 800-1000, far exceeding that of ordinary steel. This provides exceptional resistance to abrasive wear and enables long-term operation even in heavily contaminated media. Excellent Corrosion Resistance: The dense chrome layer effectively resists corrosion from water, chemicals, and various hydraulic fluids, protecting the base material and making it suitable for harsh environments such as offshore platforms, metallurgy, and chemical industries.
Superior Materials and Manufacturing Foundation:
- High-Quality Base Pipe: We utilize our own high-quality seamless steel pipes as base material. Materials include ASME-certified alloy steel and high-strength carbon steel, ensuring high strength, toughness, and consistency.

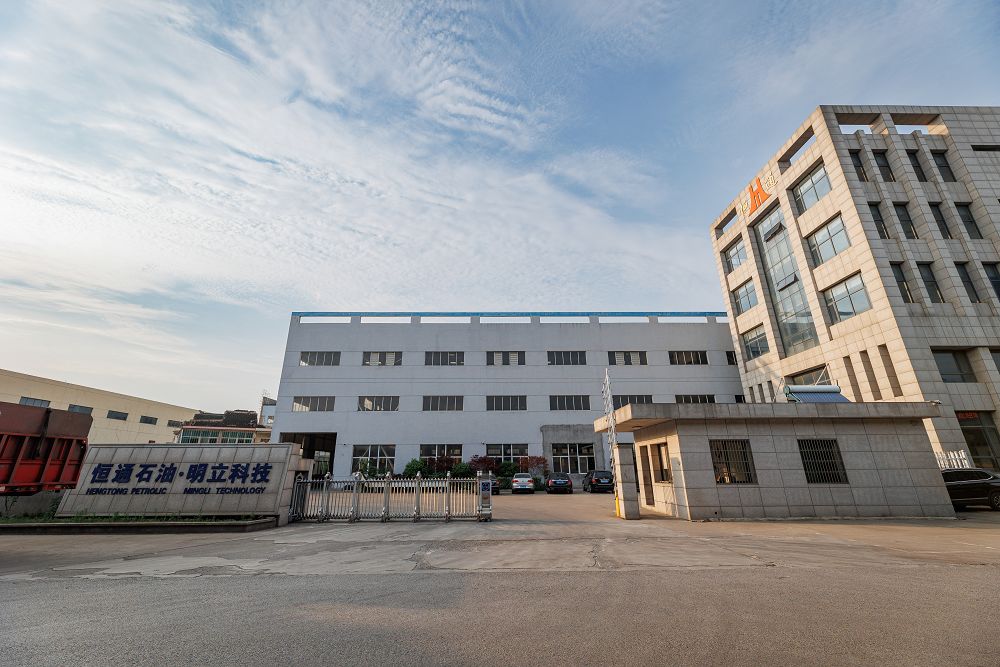

- Integrated Manufacturing: From cold drawing and honing to chrome plating, key processes are completed within our 30,000 square meter industrial base, ensuring full quality control throughout the entire process and eliminating the quality risks of outsourced processing.
Wide Applicability and Reliability:
- High-Pressure Applications: Designed specifically for high-pressure fluid conveyance systems, it offers excellent pressure-bearing capabilities and is safe and reliable.
- Long Lifecycle: Extremely low wear rates mean longer replacement cycles, significantly reducing your total cost of ownership (TCO) and equipment downtime. Global Standards: Products can be customized to meet ASME, DIN, ISO, and other international standards.
Technical Parameter Overview
|
Project |
Parameter Details |
| Base Tube Material | High-quality carbon steel (e.g., 45), alloy steel (e.g., 4140/42CrMo), stainless steel, etc. |
| Coating Material | Hard Chrome |
| Coating Thickness | Typical Range |
| Surface Hardness | ≥ HV 800 |
| Inner Diameter Range | Φ50mm - Φ400mm (Based on our cold-drawn tube capabilities, customizable) |
| Straightness | ≤ 0.5mm/1000mm |
| Surface Roughness | Ra ≤ 0.2 μm (Ra ≤ 0.1 μm available upon request) |
| Microcrack Count | ≥ 400 cracks/cm² (Ensuring oil retention and wear resistance) |
Typical Applications
Our chrome-plated honing tubes are ideal for the following industries:
Construction Machinery
Hydraulic cylinders for excavators, loaders, cranes, and concrete pump trucks.
Metallurgical Equipment
Continuous casting machines, rolling mills, and blast furnace top hydraulic systems.
Marine and Offshore Engineering
Deck machinery, steering gear, mooring systems, and offshore platform hydraulics.
Pressure Machinery
Core cylinders for injection molding machines, die-casting machines, and hydraulic presses.
Energy Equipment
Actuators and servo cylinders for hydropower and wind power equipment.
Automation Equipment
Precision CNC machine tools and industrial robot drive components.
More Value from Hengtong
High-Tech Enterprise
We are not just a manufacturer; we are a technology partner dedicated to providing energy equipment solutions.
Global Material Trading Expertise
We are proficient in global material trading and can quickly source specialized materials to meet your personalized needs.
One-Stop Solutions
From precision tube manufacturing, deep processing, to surface treatment, we offer vertically integrated supply chain services, reducing your procurement and management costs.
Quality Commitment
Utilizing advanced testing equipment (such as direct reading spectrometers, 3D measuring instruments, roughness testers, and borescopes), we rigorously inspect every tube leaving our factory to ensure flawless performance.
Consult us now and make Hengtong your reliable partner
Choosing Wuxi Hengtong means choosing more than just a product; it means choosing a commitment to quality, performance, and reliability. Our team of engineers is always ready to provide technical support and customized solutions.
As one of the most professional chrome plated honed tube manufacturers and suppliers in China, our factory provides all kinds of chrome plated honed tube with competitive price. Hope you enjoy your shopping.
