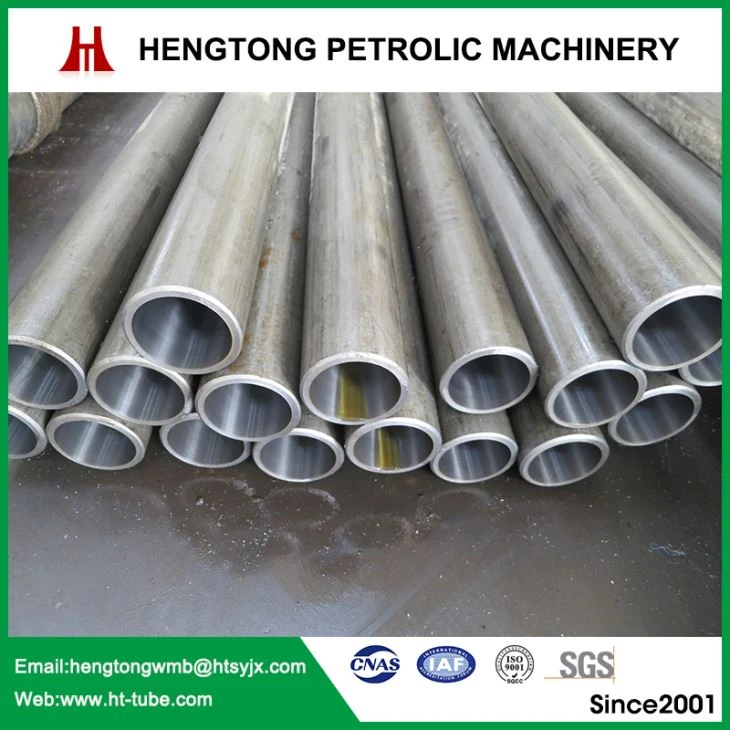

1020 Honed Pipe Introduction
Honed Tubes are presicion tubes with smooth inside, they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009 , EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose.WUXI HENGTONG PETROLIC MACHINERY has two factories of 40000 square meters and totally 150 employees manufactures Cylinder Honed Tubes, ready to hone tubes, honed tubes, skived and roller burnished tubes, chrome bar, piston rods and high-precision cold-drawn steel tubes.
1020 Honed Pipes technical parameters and Details
Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.
Original: Jiangsu, China
Certification: ISO9001.
Material: SAE1020, 20#, ST45, CK45, ST52, E355
Payment term: TT, LC
Delivery date: usually 20 to 40 days.
Packing: packed in bundle, oiled inside, with caps on both ends.
Market: Middle East/ Africa/Asia/South America/Europe/North America
MOQ: Depends on exact size and material.
Size and Tolerance:
Working method | Cylinder ID （mm） | Length （m） | Straightness （mm/m） | Tolerance on ID | Tolerance on WT | Roughness （μm） |
Cold drawn | 40-320 | ≤12M | 0.2-0.5 | / | ±5% | 0.8-1.6 |
Cold rolling | 30-100 | ≥12M | 0.2-0.5 | / | ±5% | 0.8-1.2 |
cold drawn- honed | 40-500 | 8M | 0.2-0.3 | H8-H9 | ±5% | 0.2-0.8 |
Cold drawn-skived | 40-400 | 7M | 0.2-0.3 | H8-H9 | ±5% | ≤0.4 |
Deep hole boring- honed | 320-400 | 8M | 0.2-0.3 | H7-H9 | ±8% | ≤0.8 |
Deep hole boring- skived | 320-400 | 7M | 0.2-0.3 | H8-H9 | ±8% | ≤0.4 |
Our Advantages
a. Extensive production experience: we are specialized in honed tubes, skived tubes, cold drawn pipe, and chrome bar with an experience of 20 years.

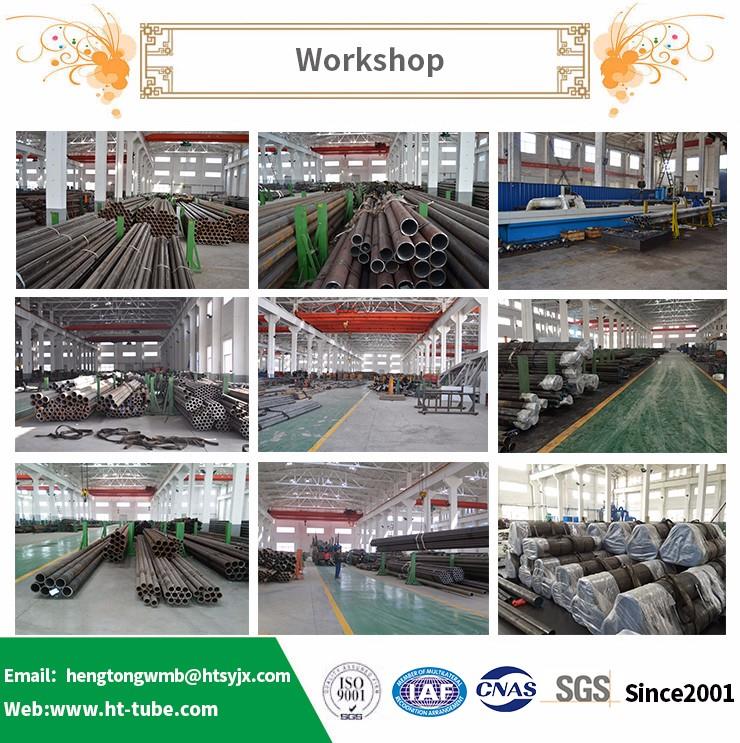

b. Complete production facilities: owning cold drawn machine, skived and roller burnished machine, honing machine, precision centerless grinding machine, straightening machine, fine polishing machine, precision lathe, milling and drilling machine, roller press and other advanced equipments. Our technicians will do regular scheduled maintenance on these machines to guarantee them work well.
c. High quality raw material: we mainly choose raw material from big steel factory, such as AN STEEL, TPCO, BAO STEEL, SHA STEEL, which are best and largest raw material manufacturer in China.
d. Strict Physical/Chemical testing procedures: meeting the requirements of the product design and process, providing reliable testing data.
e. Short Delivery time: Usually one container 20 days. We also stock some standard-sized tubes and bars.

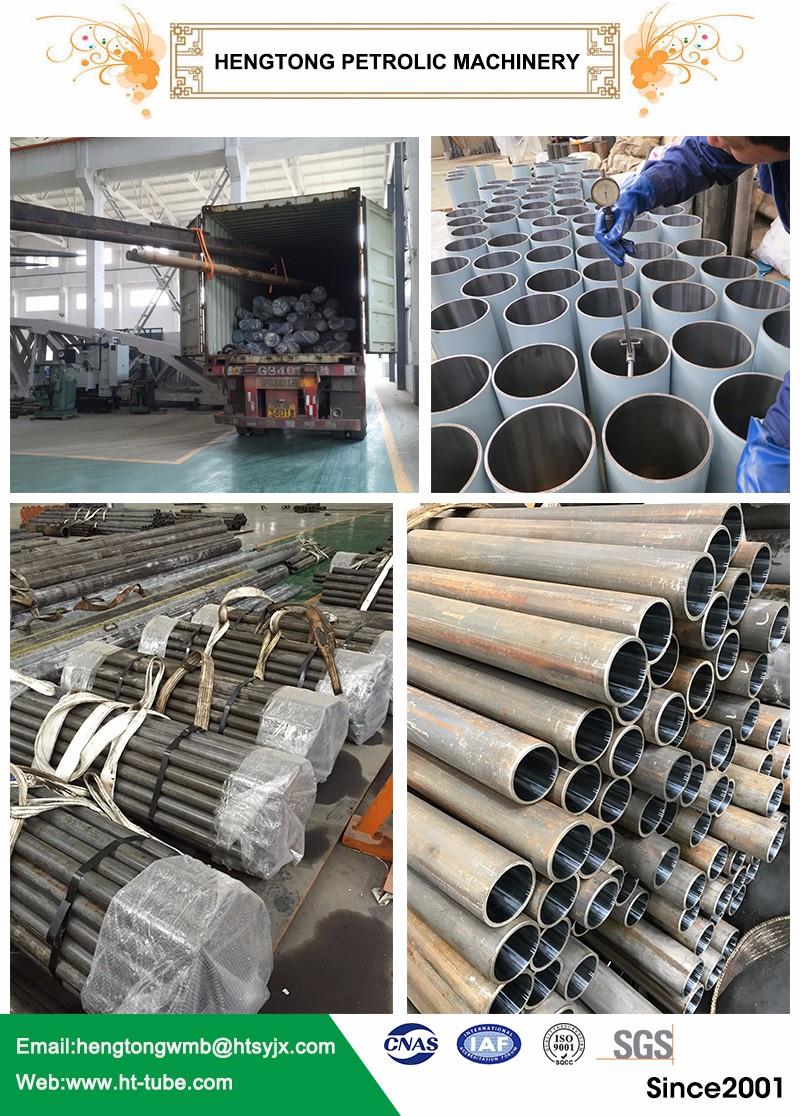

f. Safe packing: anti-rust oil be spread on tubes and bars before shipping, plastic caps on tube ends to protect inside surface, each bar be protected with cardboard tube.
