Welding Manipulator

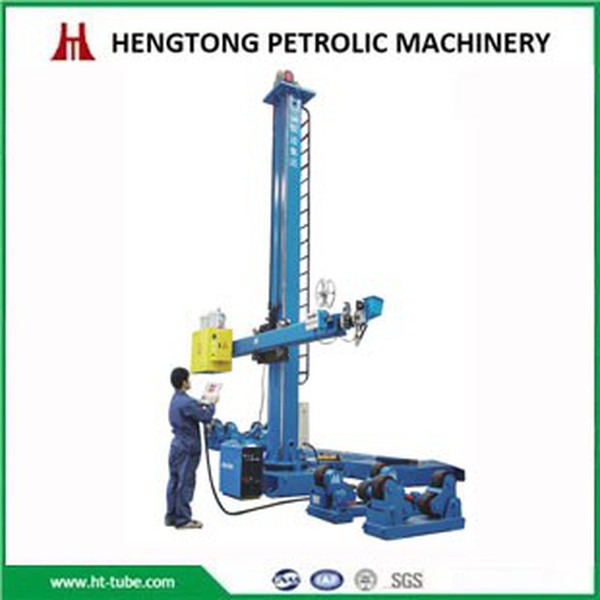

Designed for critical welding operations in petrochemical plants, power facilities, and structural fabrication, the Hengtong Column Boom Welding Manipulator redefines precision in large-scale welding. Built by Wuxi Hengtong – a certified API/ISO manufacturer for SINOPEC, CNOOC, and global energy giants – this system delivers unmatched stability, automation, and repeatability for high-value welds.
Revolutionize Your Welding Precision with Hengtong's Advanced Welding Manipulators
In high-stakes industries where joint integrity determines operational safety and efficiency, Hengtong Petroleum Machinery delivers welding solutions engineered for perfection. Our welding manipulators combine robust construction with intelligent automation to achieve flawless welds across energy, petrochemical, and heavy manufacturing sectors.
Extreme Load Capacity & Rigidity
500T-Grade Structural Design: Leveraging our heavy cold-drawing expertise (300T–500T machines), the boom withstands 10-ton payloads with zero deflection.
Dual-Gear Drive System: Eliminates slippage during long-seam welding (±0.1mm positional accuracy).
Why Choose Hengtong Welding Manipulators?
Engineered for Heavy-Duty Precision
Designed to handle large-scale components like pressure vessels, cryogenic tanks, and OCTG (Oil Country Tubular Goods), our manipulators ensure consistent weld quality even under extreme conditions (±0.05mm tolerance compliance).
Seamless Integration with Tube Manufacturing
Optimized for welding precision tubes (Φ50-500mm), alloy cylinders, and duplex stainless pipelines—perfectly complementing our ASME-certified material expertise.
Automation-Driven Efficiency
Programmable logic controllers (PLC) and adaptive trajectory tracking reduce human error by 70% and increase throughput by 50%, slashing project timelines.
Technical Highlights
| Feature | Specification |
| Load Capacity | 2-50 Tons (Customizable) |
| Travel Length | Up to 20 Meters (Modular Extensions) |
| Positioning Accuracy | ±0.1mm (Laser-Guided) |
| Compatibility | IoT-Ready PLC with Real-Time Monitoring |
Applications
Pressure Vessel Fabrication
Automated girth welding for ASME-certified gas cylinders.
Pipeline Systems
Longitudinal seam welding for cryogenic/octg pipelines.
Energy Equipment
Reactor cladding, heat exchanger modules, and turbine components.
The Hengtong Advantage
Material-Matched Expertise
Leverage our metallurgical knowledge to select optimal welding parameters for alloy steels/duplex stainless.
Turnkey Solutions
From manipulator deployment to post-weld NDT validation.
Global Support
24/7 remote diagnostics and on-site technical service.
Elevate Your Production Line with Robotics-Backed Precision
Request a custom demo or technical proposal – where innovation meets integrity.
Backed by 30,000㎡ industrial expertise and RMB 250M annual R&D investment.
As one of the most professional welding manipulator manufacturers and suppliers in China, our factory provides all kinds of welding manipulator with competitive price. Hope you enjoy your shopping.

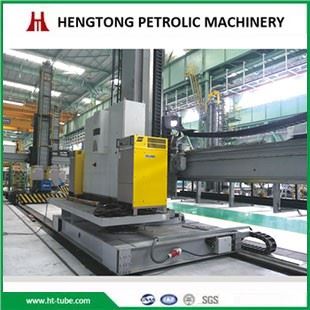

Movable Heavy Duty Manipulator
