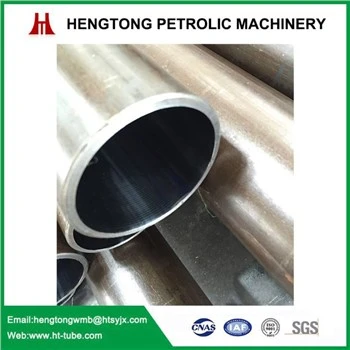

Skived and Burnished Tube
Superior Precision: Hengtong Skived and Burnished Tube
The Ultimate Hydraulic Cylinder Tubing Solution That Sets Industry Standards
In the demanding world of hydraulic systems, the performance of core components directly determines the reliability, efficiency, and lifespan of the entire equipment. Hengtong Petroleum Machinery, leveraging its deep expertise in precision tube manufacturing, offers world-class precision-bored and rolled tubes—seamless tubes engineered for exceptional performance.
What is Precision Boring and Rolling?
Precision boring and rolling is an advanced, multi-faceted machining process. We first perform skiving to precisely mill the inner bore of high-quality seamless steel tubes, ensuring exceptional dimensional accuracy and straightness. Burnishing then cold-works the inner tube surface using high-pressure rolling tools. This process not only significantly improves surface roughness but also creates a dense, compressive stress layer on the inner tube surface, significantly enhancing fatigue strength, wear resistance, and corrosion resistance.
Our products are more than just components; They are the cornerstone of your equipment's reliability.
Unparalleled Surface Quality
- Mirror-Grade Finish: Internal surface roughness can reach Ra ≤ 0.4 μm or even lower. This exceptionally smooth surface significantly reduces friction, minimizing wear on seals and pistons, effectively preventing leaks and extending the life of the entire hydraulic system.
- Excellent Wear Resistance: The cold work hardening effect of the rolling process significantly increases surface hardness, resulting in wear resistance far exceeding that of ordinary honed pipes.
Superb Mechanical Properties
- Extreme Fatigue Strength: The compressive stress layer formed on the internal surface effectively inhibits crack initiation and propagation, enabling the pipe to withstand higher operating pressures and frequent pressure fluctuations. It is particularly suitable for high-pressure, heavy-load applications such as construction machinery and marine vessels. Excellent Straightness and Roundness: Our precise machining controls ensure the tubes have excellent straightness and roundness (±0.05mm tolerance), providing guidance for smooth piston movement, eliminating spooling, and ensuring precise and smooth equipment operation.
Perfect Combination Of Materials And Processes
- High-Quality Base Tube Selection: We strictly select high-quality ASME-certified alloy steel and seamless structural tubing as raw materials to ensure product mechanical properties and consistency from the source.
- One-Stop Manufacturing: Leveraging our complete industrial chain from cold drawing (Ø50-500mm), honing, to precision boring and rolling, we rigorously control every process to ensure impeccable overall quality of the finished tubes.
Core Technical Parameters
|
Features |
Specifications/Capabilities |
| Inner Diameter Range | Φ50mm - Φ500mm |
| Wall Thickness | Customized according to customer requirements |
| Surface Roughness (Ra) | ≤ 0.4 μm (higher standards available upon request) |
| Tolerance Control | Inner Diameter Tolerance |
| Material Grade | Carbon Steel, Alloy Steel (e.g., 27SiMn, 45), Stainless Steel, etc. |
| Standard Length | Up to 12 meters (Customizations supported) |
| Main Standards | Complies with relevant standards such as GB, ASTM, DIN, and JIS |
Applications: Built for Harsh Working Conditions
Hengtong precision-bored and rolled tubes are an ideal choice for the following industries:
Construction Machinery
Core tubing for hydraulic cylinders used in excavators, cranes, loaders, concrete pump trucks, etc.
Marine and Maritime
Hydraulic cylinders for high-pressure, corrosion-resistant applications such as deck machinery, steering gear, and mooring systems.
Energy Equipment
Oil and gas field production equipment (such as wellheads and blowout preventers), hydraulic stations, and presses.
Heavy Manufacturing
Hydraulic systems for large industrial equipment such as presses, metallurgical equipment, and mold making machinery.
Injection Molding Machinery
High-precision, high-pressure-resistant injection molding machine shooting platforms and clamping cylinders.
Hengtong's Added Value
Technical Expert Support: Our team of engineers can discuss your application requirements and provide professional advice on everything from material selection and specifications to technical standards.
Global Supply Chain: Located in the economic center of the Yangtze River Delta, we offer convenient logistics and efficient service to domestic and international customers.
Quality Assurance System: From raw material storage to finished product shipment, we implement a rigorous quality inspection process to ensure every pipe delivered is flawless.
Choosing Hengtong precision boring and rolling tubes means choosing long-lasting performance, lower maintenance costs, and peace of mind throughout the equipment lifecycle.
Contact us for detailed technical brochures, customized solutions, and free samples. Let us help your project succeed with our precision-manufactured, superior products.
As one of the most professional skived and burnished tube manufacturers and suppliers in China, our factory provides all kinds of skived and burnished tube with competitive price. Hope you enjoy your shopping.

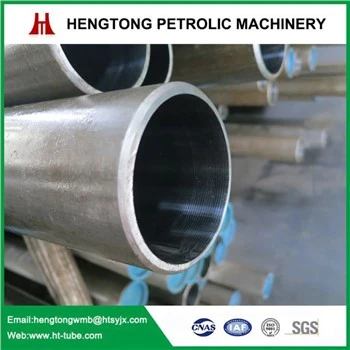

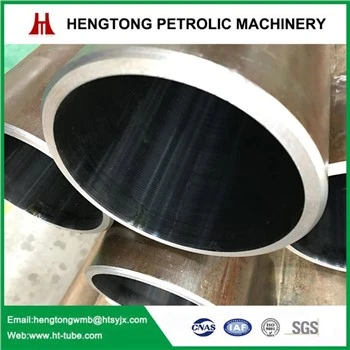

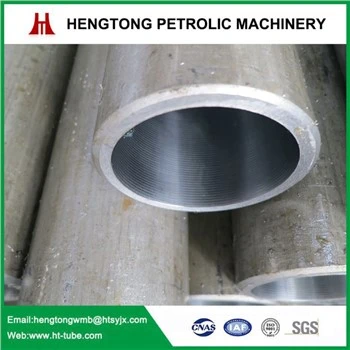

Srb Seamless Tube, Hydraulic Cylinder Srb Pipe, Srb Honed Tube
