Skived and Burnished Pipe

Skived And Burnished Pipes Introduction Skived And Burnished Pipes are presicion tubes with smooth inside , they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold...

Skived And Burnished Pipes Introduction

Skived And Burnished Pipes are presicion tubes with smooth inside , they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009 , EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose. IF you are looking for seamless cold drawn honed tubes or SRB tubes for hydraulic cylinder pipes or pneumatic cylinder tubes, please contact us without any hesitation.

Skived And Burnished Pipe technical parameters and Details

Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.

Original: Jiangsu, China

Certification: ISO9001.

Material: SAE1020, 20#, ST45, CK45, ST52, E355

Payment term: TT, LC

Delivery date: usually 20 to 40 days.

Packing: packed in bundle, oiled inside, with caps on both ends.

Market: Middle East/ Africa/Asia/South America/Europe/North America

MOQ: Depends on exact size and material.

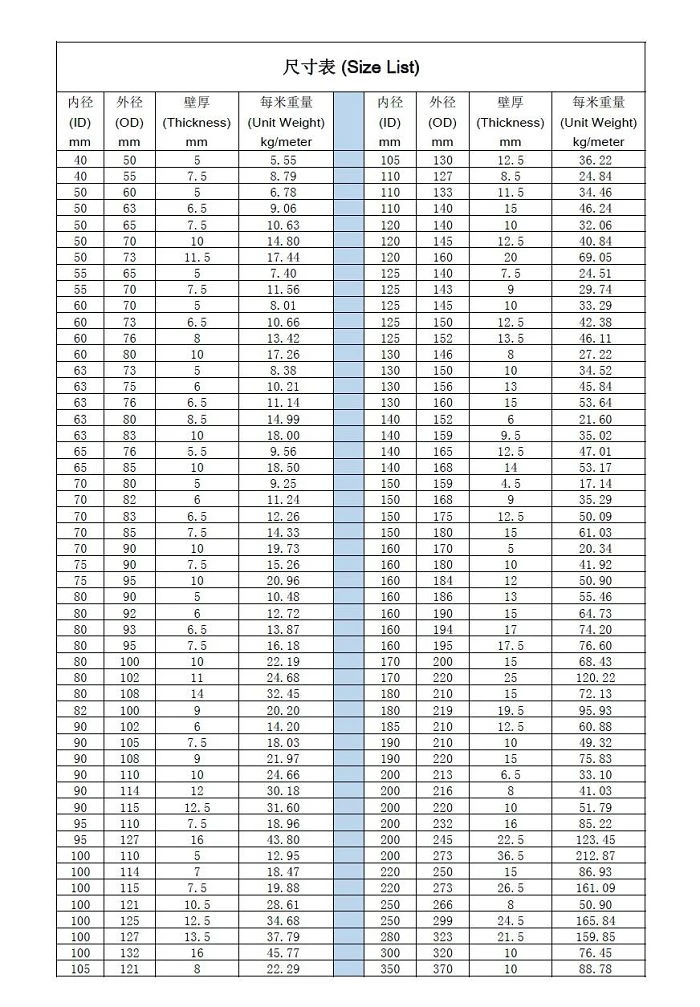

Size and Tolerance:

Working method	Cylinder ID （mm）	Length （m）	Straightness （mm/m）	Tolerance on ID	Tolerance on WT	Roughness （μm）
Cold drawn	40-320	≤12M	0.2-0.5	/	±5%	0.8-1.6
Cold rolling	30-100	≥12M	0.2-0.5	/	±5%	0.8-1.2
cold drawn- honed	40-500	8M	0.2-0.3	H8-H9	±5%	0.2-0.8
Cold drawn-skived	40-400	7M	0.2-0.3	H8-H9	±5%	≤0.4
Deep hole boring- honed	320-400	8M	0.2-0.3	H7-H9	±8%	≤0.8
Deep hole boring- skived	320-400	7M	0.2-0.3	H8-H9	±8%	≤0.4
