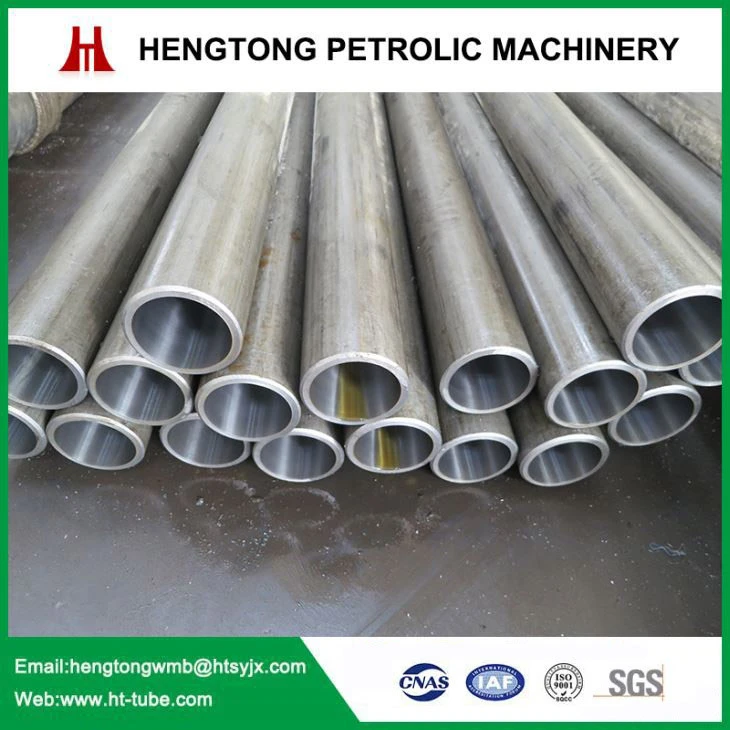

S45C Cold Drawn Honed Tube

S45C Cold Drawn honed Tube Introduction Honed Tubes are presicion tubes with smooth inside, they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for...

Inquiry

  • Product Details

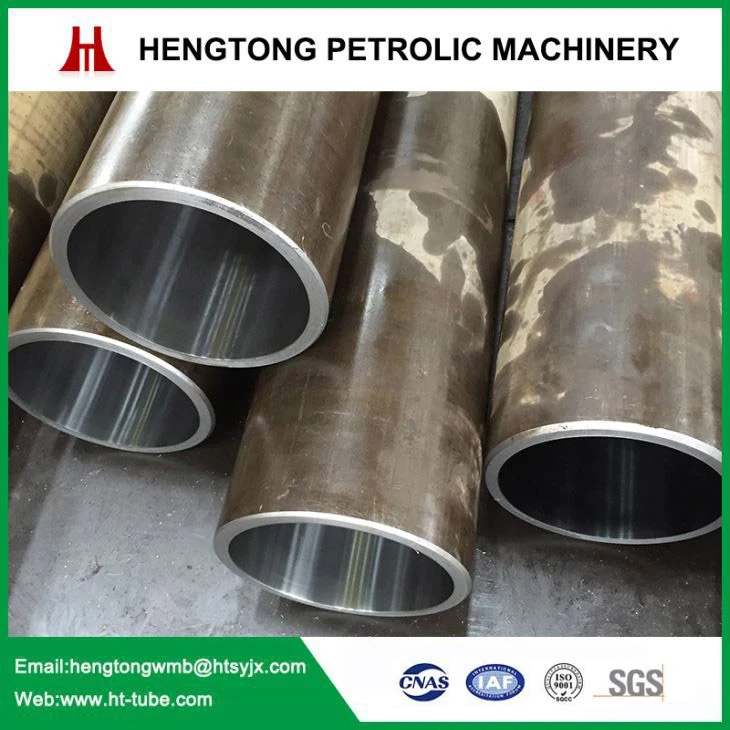

S45C Cold Drawn honed Tube Introduction

Honed Tubes are presicion tubes with smooth inside, they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009,EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose.

Cold Drawn honed Tubes technical parameters and Details

Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.

Original: Jiangsu, China

Certification: ISO9001.

Material: SAE1020, 20#, ST45, CK45, ST52, E355

Payment term: TT, LC

Delivery date: usually 20 to 40 days.

Packing: packed in bundle, oiled inside, with caps on both ends.

Market: Middle East/ Africa/Asia/South America/Europe/North America

MOQ:  Depends on exact size and material.

Chemical Properties:

Material

C%

Mn%

Si%

S%

P%

20#

0.17-0.23

0.35-0.65

0.17-0.37

≤0.035

≤0.035

ST45

≤0.21

≥0.4

≤0.35

≤0.025

≤0.025

E255

≤0.21

0.4-1.1

≤0.35

≤0.025

≤0.025

45#

0.42-0.50

0.50-0.80

0.17-0.37

≤0.035

≤0.035

Q345B

≤0.20

≤1.70

≤0.50

≤0.035

≤0.035

E355

≤0.22

≤1.6

≤0.55

≤0.025

≤0.025

ST52

≤0.22

≤1.6

≤0.55

≤0.04

≤0.04

25Mn

0.22-0.29

0.70-1.0

0.17-0.37

≤0.035

≤0.035

27SiMn

0.24-0.32

1.10-1.40

1.10-1.40

≤0.035

≤0.035

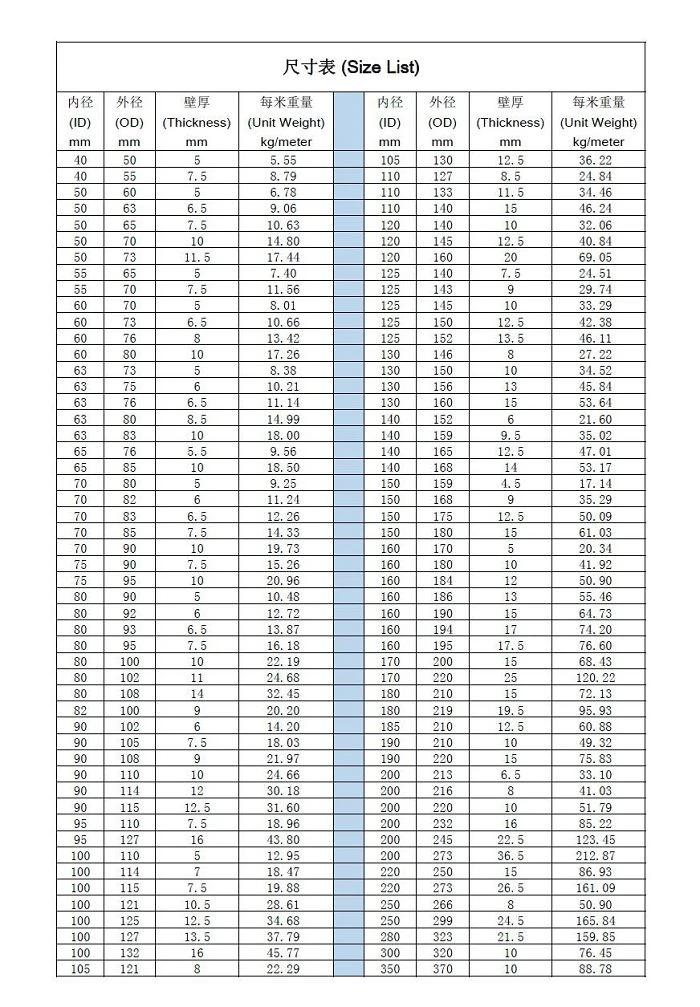

Size list: (if you need other sizes, please let us know)

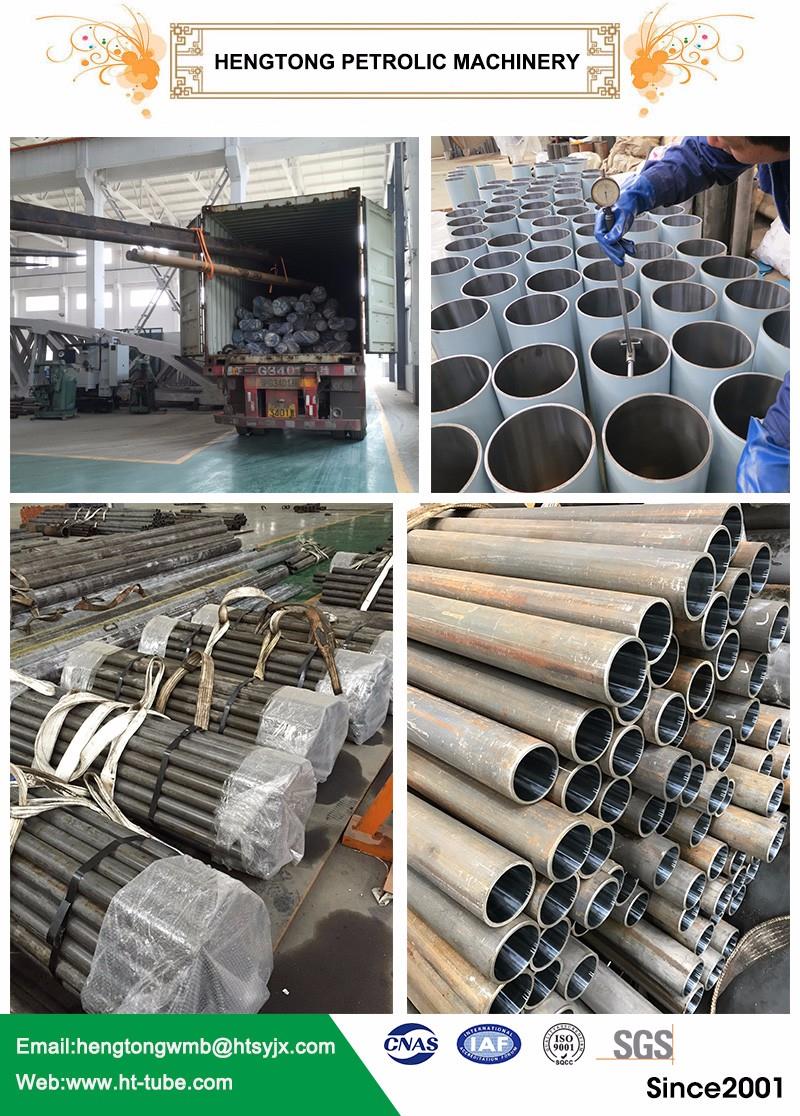

Hydraulic Steel Honed Tube.jpg

Honed Tubes characteristics

1. The inside tolerance could up to H8.

2. Honing Inside roughness could reach to Ra 0.4um. Skiving inside could reach to Ra 0.2 um.

3. ID size from 50 to 280mm, OD size from 60 to 370mm, totally has more than 200 sizes.

4. Length could be fixed length of random length.

5. Inside chrome plated is for optional.

Experience and markets

Our factory has more than 20years working experiences on researching and selling. Products are well sailed all over the world, got many compliments from customers.
