Honed Steel Pipe

Honed Steel Pipe Introduction Honed Steel Pipes are presicion tubes with smooth inside, they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for...

Inquiry

  • Product Details

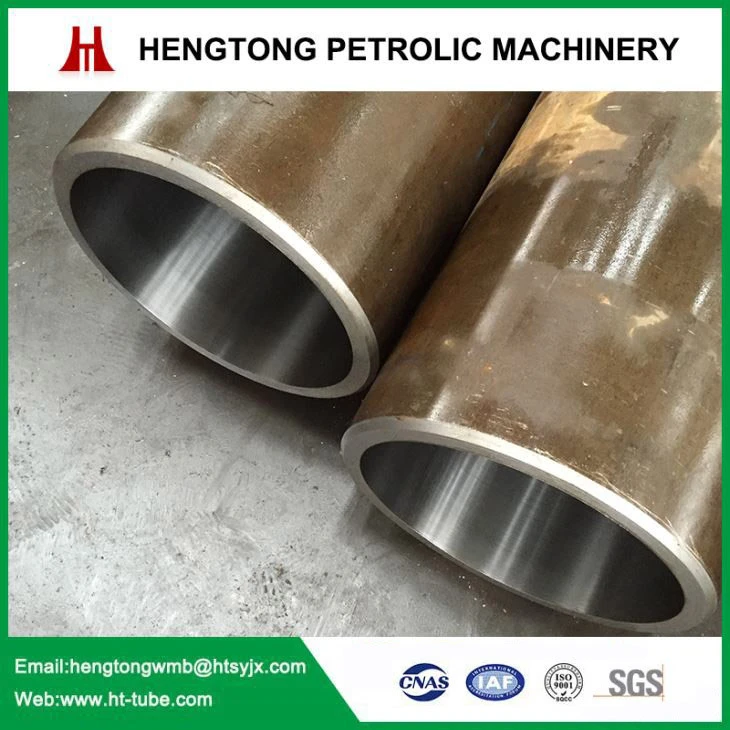

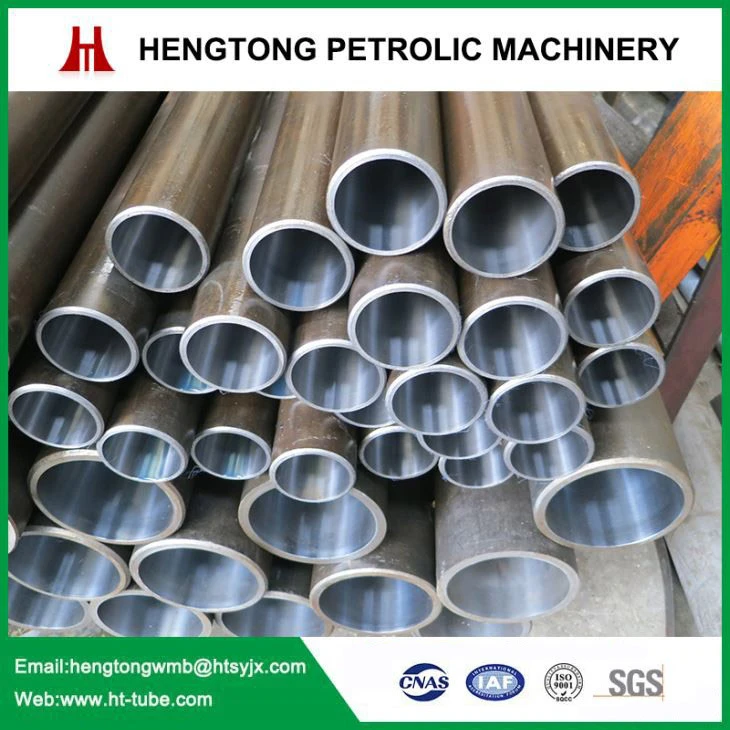

Honed Steel Pipe Introduction

Honed Steel Pipes are presicion tubes with smooth inside, they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009,EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose.

Honed Steel Pipes technical parameters and Details

Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.

Original: Jiangsu, China

Certification: ISO9001.

Material: SAE1020, 20#, ST45, CK45, ST52, E355

Payment term: TT, LC

Delivery date: usually 20 to 40 days.

Packing: packed in bundle, oiled inside, with caps on both ends.

Market: Middle East/ Africa/Asia/South America/Europe/North America

MOQ:  Depends on exact size and material.

Size and Tolerance:

Working

method

Cylinder ID (mm)

Length

(m)

Straightness

(mm/m)

Tolerance

on ID

Tolerance

on WT

Roughness

(μm)

Cold drawn

40-320

≤12M

0.2-0.5

/

±5%

0.8-1.6

Cold rolling

30-100

≥12M

0.2-0.5

/

±5%

0.8-1.2

cold drawn-

honed

40-500

8M

0.2-0.3

H8-H9

±5%

0.2-0.8

Cold drawn-skived

40-400

7M

0.2-0.3

H8-H9

±5%

≤0.4

Deep hole

boring- honed

320-400

8M

0.2-0.3

H7-H9

±8%

≤0.8

Deep hole

boring- skived

320-400

7M

0.2-0.3

H8-H9

±8%

≤0.4

Stainless Steel Cylinder Tube.jpg

Honed Tubes characteristics

1. The inside tolerance could up to H8.

2. Honing Inside roughness could reach to Ra 0.4um. Skiving inside could reach to Ra 0.2 um.

3. ID size from 50 to 280mm, OD size from 60 to 370mm, totally has more than 200 sizes.

4. Length could be fixed length of random length.

5. Inside chrome plated is for optional.

Production process

Raw material – annealing for material of 45#, 27SiMn, 25Mn – Acid cleaning – parkerizing & Saponifying – cold drawn – leveling – saw off bad section – stress relieving – leveling –honing or skiving – inspection – oiled plated - packing

Production equipment.jpg

Experience and markets

Our factory has more than 20years working experiences on researching and selling. Products are well sailed all over the world, got many compliments from customers.

FAQ

1. Q:Are you a manufacturer, trading company or a third party?

A:We are a manufacturer, and we have builded up our company since 2001.

2. Q:If i will need to stay in your place for few days, is that possible to book the hotel for me?

A:It’s always my pleasure, hotel booking service is available.

3. Q:What is your minimum order quantity, can you send me samples?

A: the Exact MOQ depends on your exact requirement. And sample is available.

4. Q:What is the delivery time?

A: Usually from 20 to 40 days.

5. Q: How is your price level?

A: Factory direct sale, we have whole production line ourselves.
