Ck45 Steel Honed Tube

Ck45 Steel Honed Tube Introduction Honed Tubes are presicion tubes with smooth inside, they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for...

Inquiry

  • Product Details

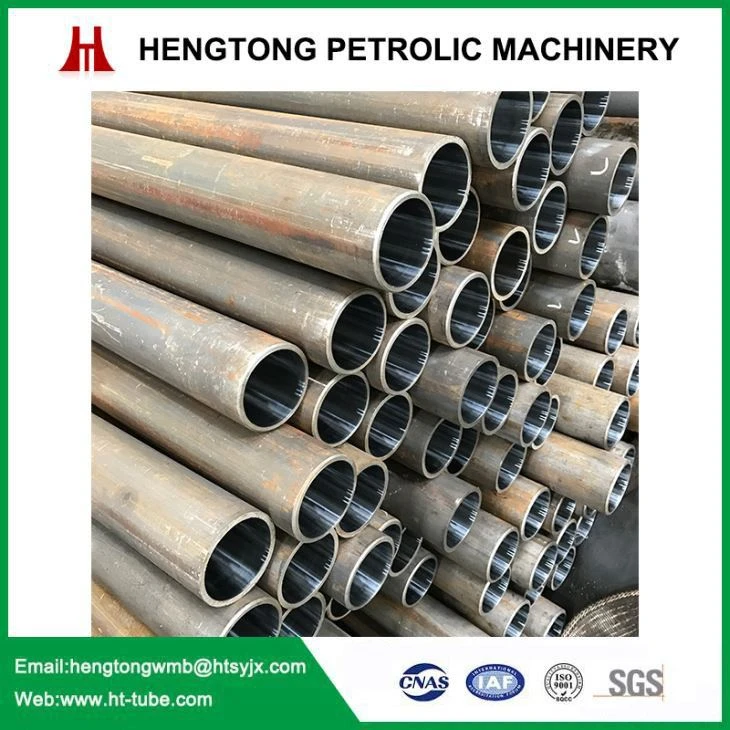

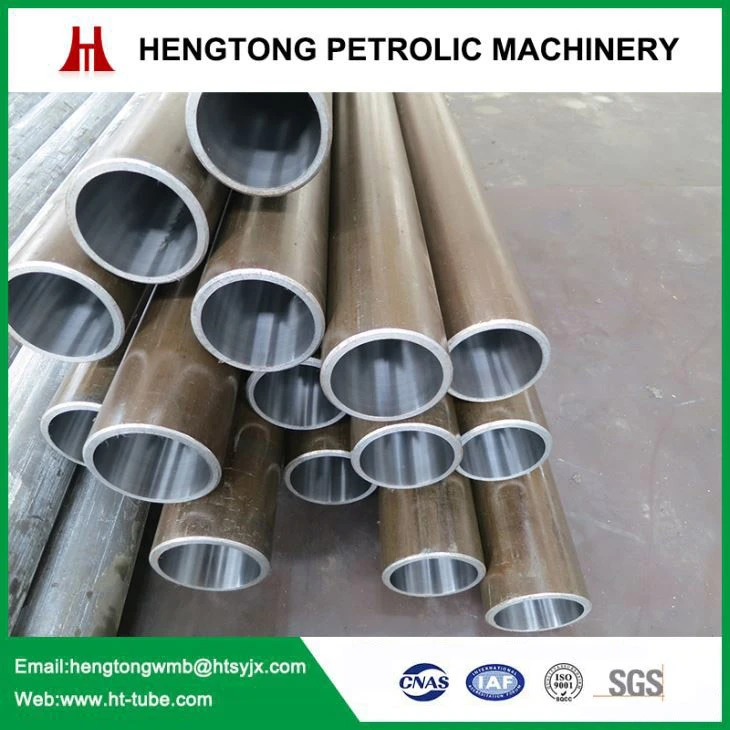

Ck45 Steel Honed Tube Introduction

Honed Tubes are presicion tubes with smooth inside, they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009,EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose.

Ck45 Steel Honed Tubes technical parameters and Details

Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.

Original: Jiangsu, China

Certification: ISO9001.

Material: SAE1020, 20#, ST45, CK45, ST52, E355

Payment term: TT, LC

Delivery date: usually 20 to 40 days.

Packing: packed in bundle, oiled inside, with caps on both ends.

Market: Middle East/ Africa/Asia/South America/Europe/North America

MOQ:  Depends on exact size and material.

Size and Tolerance:

Working

method

Cylinder ID (mm)

Length

(m)

Straightness

(mm/m)

Tolerance

on ID

Tolerance

on WT

Roughness

(μm)

Cold drawn

40-320

≤12M

0.2-0.5

/

±5%

0.8-1.6

Cold rolling

30-100

≥12M

0.2-0.5

/

±5%

0.8-1.2

cold drawn-

honed

40-500

8M

0.2-0.3

H8-H9

±5%

0.2-0.8

Cold drawn-skived

40-400

7M

0.2-0.3

H8-H9

±5%

≤0.4

Deep hole

boring- honed

320-400

8M

0.2-0.3

H7-H9

±8%

≤0.8

Deep hole

boring- skived

320-400

7M

0.2-0.3

H8-H9

±8%

≤0.4

Cylinder Tubes.jpgAfter-sales service:

1. Where to buy our products for one year warranty and life long maintenance.
2. 24-hour telephone service.
3. A large stock of components and parts, easily-worn parts.

Production process

Raw material – annealing for material of 45#, 27SiMn, 25Mn – Acid cleaning – parkerizing & Saponifying – cold drawn – leveling – saw off bad section – stress relieving – leveling –honing or skiving – inspection – oiled plated - packing

Quality control

1. We only buy raw material from famous tube factory, and Checking raw material quality before production.

2. We check the tube ID tolerance, OD tolerance and surface after cold drawn one by one.

3. We inspect the honed tube inside tolerance and surface again one by one after honing or skiving.

Packaging & Delivery

Packaging Details

in bundle, with plastic caps, anti-rusted oiled, with woven bags

Delivery Time

Shipped in 20 days after payment

Packaging & Delivery.jpg
