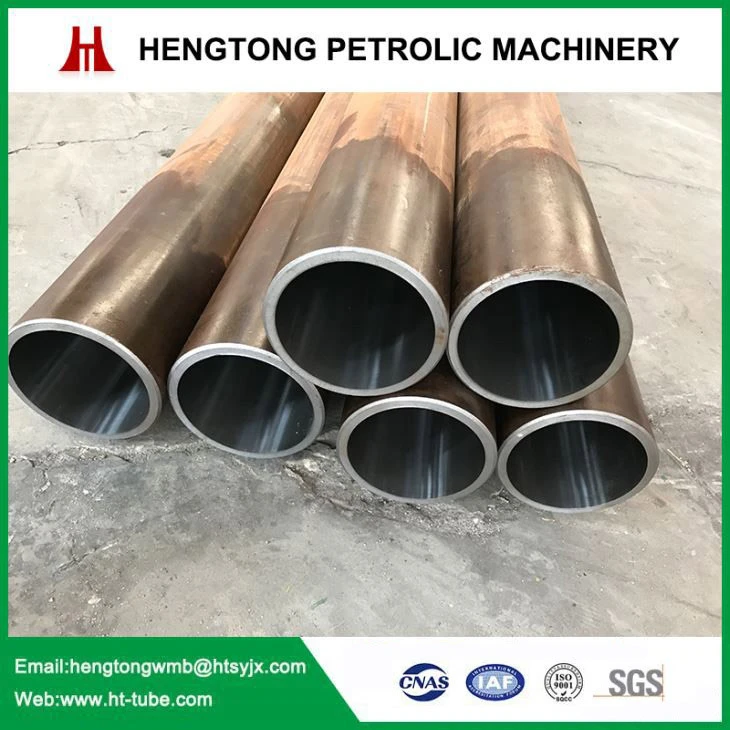

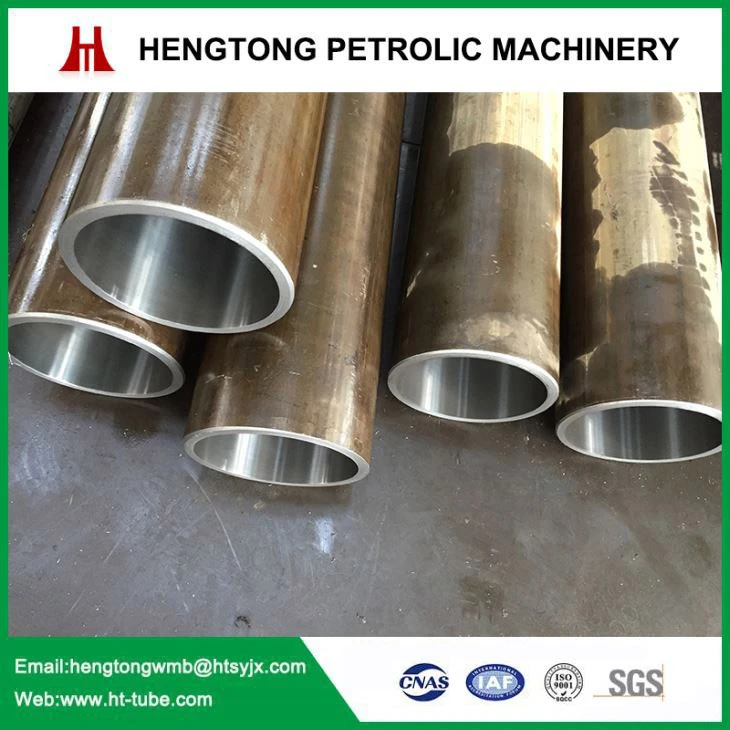

Ck45 Steel Honed Pipe

Ck45 Steel Honed Pipe Introduction Honed Tubes are presicion tubes with smooth inside, they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for...

Inquiry

  • Product Details

Ck45 Steel Honed Pipe Introduction

Honed Tubes are presicion tubes with smooth inside, they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009,EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose.

Ck45 Steel Honed Pipes technical parameters and Details

Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.

Original: Jiangsu, China

Certification: ISO9001.

Material: SAE1020, 20#, ST45, CK45, ST52, E355

Payment term: TT, LC

Delivery date: usually 20 to 40 days.

Packing: packed in bundle, oiled inside, with caps on both ends.

Market: Middle East/ Africa/Asia/South America/Europe/North America

MOQ:  Depends on exact size and material.

Size and Tolerance:

Working

method

Cylinder ID (mm)

Length

(m)

Straightness

(mm/m)

Tolerance

on ID

Tolerance

on WT

Roughness

(μm)

Cold drawn

40-320

≤12M

0.2-0.5

/

±5%

0.8-1.6

Cold rolling

30-100

≥12M

0.2-0.5

/

±5%

0.8-1.2

cold drawn-

honed

40-500

8M

0.2-0.3

H8-H9

±5%

0.2-0.8

Cold drawn-skived

40-400

7M

0.2-0.3

H8-H9

±5%

≤0.4

Deep hole

boring- honed

320-400

8M

0.2-0.3

H7-H9

±8%

≤0.8

Deep hole

boring- skived

320-400

7M

0.2-0.3

H8-H9

±8%

≤0.4

Size list: (if you need other sizes, please let us know)


Honed Tubes characteristics

1. The inside tolerance could up to H8.

2. Honing Inside roughness could reach to Ra 0.4um. Skiving inside could reach to Ra 0.2 um.

3. ID size from 50 to 280mm, OD size from 60 to 370mm, totally has more than 200 sizes.

4. Length could be fixed length of random length.

5. Inside chrome plated is for optional.

Experience and markets

Our factory has more than 20years working experiences on researching and selling. Products are well sailed all over the world, got many compliments from customers.

Our Advantages

a. Extensive production experience: we are specialized in honed tubes, skived tubes, cold drawn pipe, and chrome bar with an experience of 20 years.

b. Complete production facilities: owning cold drawn machine, skived and roller burnished machine, honing machine, precision centerless grinding machine, straightening machine, fine polishing machine, precision lathe, milling and drilling machine, roller press and other advanced equipments. Our technicians will do regular scheduled maintenance on these machines to guarantee them work well.

c. Strict Physical/Chemical testing procedures: meeting the requirements of the product design and process, providing reliable testing data.

d. Short Delivery time: Usually one container 20 days. We also stock some standard-sized tubes and bars.

e. Safe packing: anti-rust oil be spread on tubes and bars before shipping, plastic caps on tube ends to protect inside surface, each bar be protected with cardboard tube.
