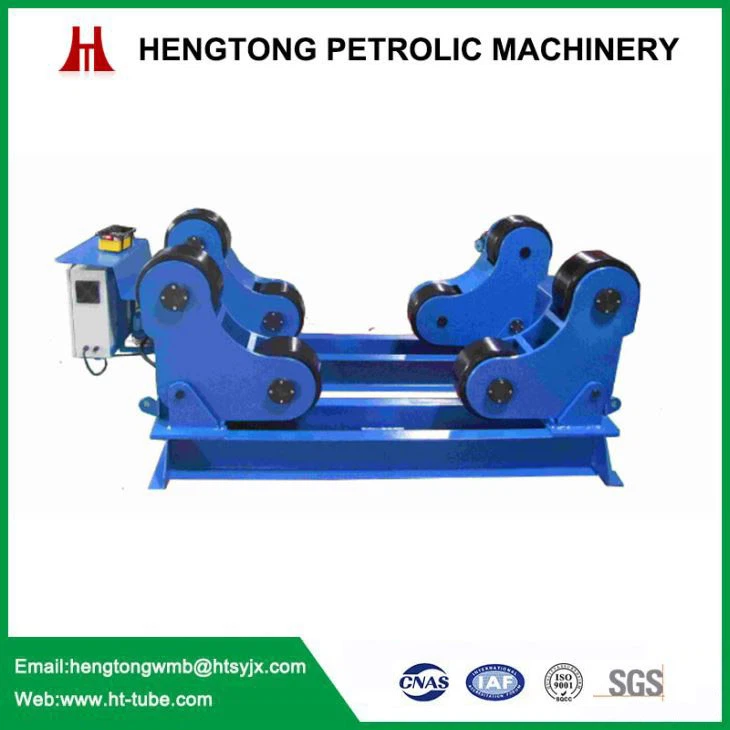

Conventional Welding rotator welding pipe turning rolls Introduction
The Conventional Welding rotator welding pipe turning rolls is the displacement equipment which uses the friction force between the active roller and the welding parts to drive the workpiece to rotate. According to the diameter of the workpiece, the rotation Angle of the wheel group can be adjusted automatically, and the heart can be adjusted automatically. It is mainly used for pipe, container, boiler, oil tank, etc of cylindrical workpiece or welding assembly, when with the welding manipulator, welding power source, can achieve the workpiece inside and outside longitudinal seam and the internal and external circular seam welding.
Conventional Welding rotator welding pipe turning rolls Specifications
model | Maxloding capacity (kg) | Applicable Workpiece Dia (mm) | Roller Dia&width(mm) | Roller speed (m/h) | Motor power (kw) | Speed adjust | |
Rubber roller | Metal roller | ||||||
HGZ-5 | 5000 | ￠250-2300 | ￠250*100 | 2*￠240*20 | 100-1000 | 2*0.27 | Variable Frequency Drive (VFD) |
HGZ-10 | 10000 | ￠320-2800 | ￠300*120 | 2*￠290*25 | 100-1000 | 2*0.55 | |
HGZ-20 | 20000 | ￠500-3500 | ￠350*120 | 2*￠340*30 | 100-1000 | 2*0.75 | |
HGZ-40 | 40000 | ￠600-4200 | ￠400*120 | 2*￠390*40 | 100-1000 | 2*1.5 | |
HGZ-60 | 60000 | ￠750-4800 | ￠450*120 | 2*￠440*50 | 100-1000 | 2*2.2 | |
HGZ-80 | 80000 | ￠800-5000 | ￠500*120 | 2*￠490*60 | 100-1000 | 2*3 | |
HGZ-100 | 100000 | ￠800-5500 | ￠500*120 | 2*￠490*70 | 100-1000 | 2*4 | |
HGZ-200 | 150000 | ￠800-6500 | / | ￠700*250 | 100-1000 | 2*4 | |
HGZ-300 | 300000 | ￠800-6500 | / | ￠800*300 | 100-1000 | 2*5.5 | |
HGZ-500 | 500000 | ￠1000-8000 | / | ￠1000*350 | 100-1000 | 2*7.5 | |
HGZ-800 | 800000 | ￠1000-8000 | / | ￠1000*400 | 100-1000 | 2*11 | |
Conventional Welding rotator welding pipe turning rolls Advantages
(1) Rotators mainly consists of power unit, idler unit, electric control box and hand control panel.
(2) rotators (turning rolls) are used for the inside and outside circumferential and longitudinal welding.
(3) The distance of rollers can be adjusted automatically according to the diameter of workpiece.
(4) Variable Frequency drive speed control, being stable and precise.
(5) rubber, steel or PU wheel, it is all on customers' decision.
(6) It can be designed as movable type.
(7) Hand control panel facilitates operation.
After-sales service:?
1.?Where to buy our products for one year warranty and life long maintenance.?
2.?24-hour telephone service.?
3.?A large stock
of components and parts, easily-worn parts.?
