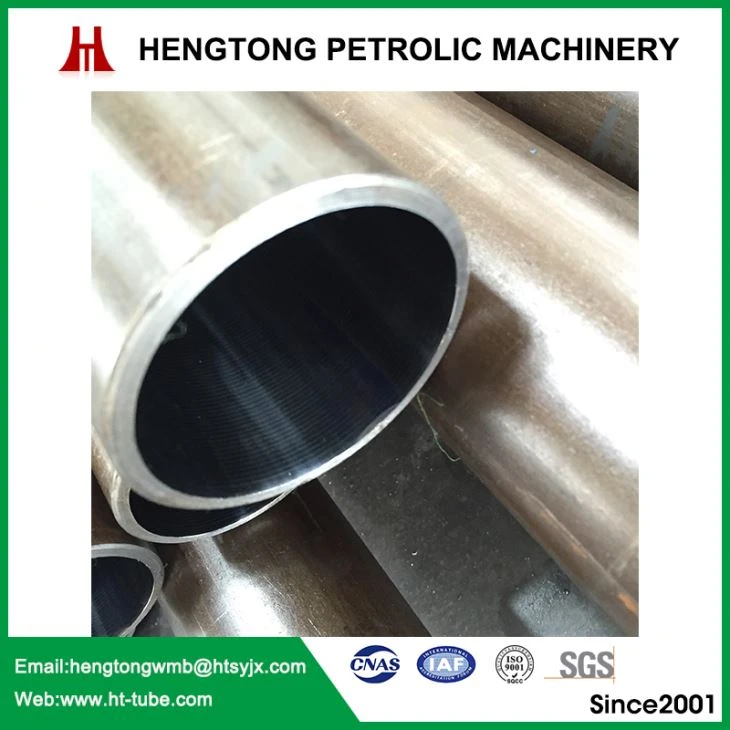

Skived And Burnished Pipes Introduction
Skived And Burnished Pipes are presicion tubes with smooth inside , they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009 , EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose. IF you are looking for seamless cold drawn honed tubes or SRB tubes for hydraulic cylinder pipes or pneumatic cylinder tubes, please contact us without any hesitation.
Skived And Burnished Pipe technical parameters and Details
Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.
Original: Jiangsu, China
Certification: ISO9001.
Material: SAE1020, 20#, ST45, CK45, ST52, E355
Payment term: TT, LC
Delivery date: usually 20 to 40 days.
Packing: packed in bundle, oiled inside, with caps on both ends.
Market: Middle East/ Africa/Asia/South America/Europe/North America
MOQ: Depends on exact size and material.
Size and Tolerance:
|
Working method |
Cylinder ID （mm） |
Length （m） |
Straightness （mm/m） |
Tolerance on ID |
Tolerance on WT |
Roughness （μm） |
|
Cold drawn |
40-320 |
≤12M |
0.2-0.5 |
/ |
±5% |
0.8-1.6 |
|
Cold rolling |
30-100 |
≥12M |
0.2-0.5 |
/ |
±5% |
0.8-1.2 |
|
cold drawn- honed |
40-500 |
8M |
0.2-0.3 |
H8-H9 |
±5% |
0.2-0.8 |
|
Cold drawn-skived |
40-400 |
7M |
0.2-0.3 |
H8-H9 |
±5% |
≤0.4 |
|
Deep hole boring- honed |
320-400 |
8M |
0.2-0.3 |
H7-H9 |
±8% |
≤0.8 |
|
Deep hole boring- skived |
320-400 |
7M |
0.2-0.3 |
H8-H9 |
±8% |
≤0.4 |
Size list: (if you need other sizes, please let us know)
Skived and roller burnished tubes characteristics
1. The inside tolerance could up to H8.
2. Honing Inside roughness could reach to Ra 0.4um. Skiving inside could reach to Ra 0.2 um.
3. ID size from 50 to 280mm, OD size from 60 to 370mm, totally has more than 200 sizes.
4. Length could be fixed length of random length.
5. Inside chrome plated is for optional.
