Honed Pipe In Stock introduction

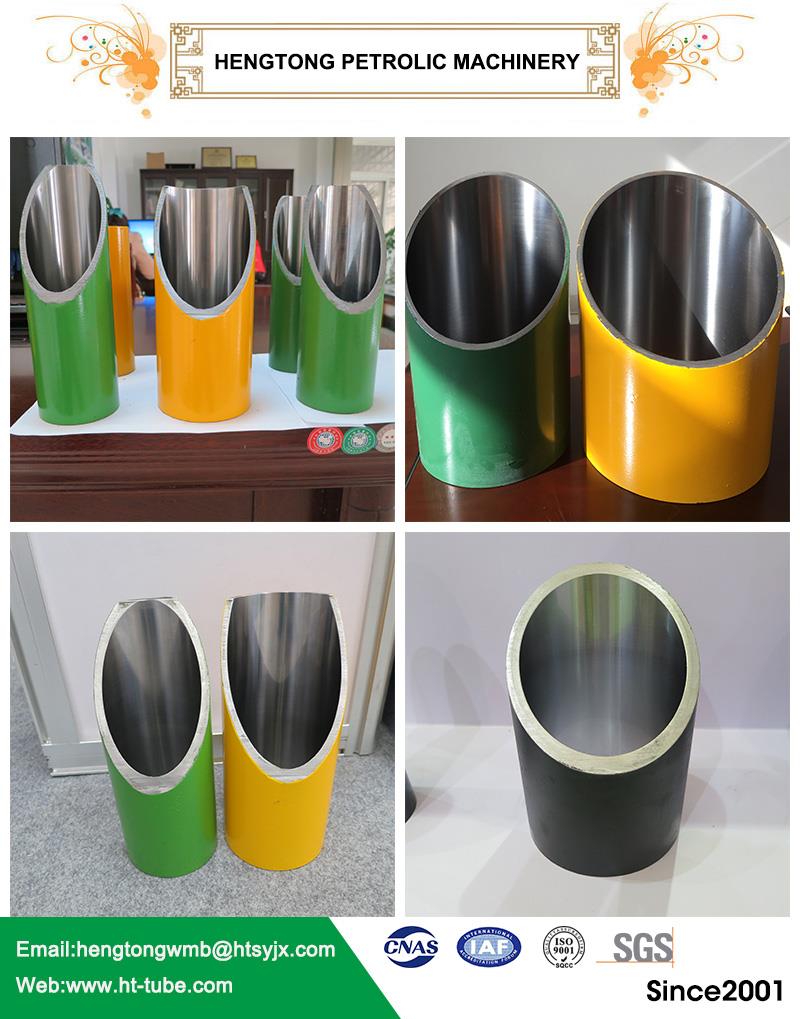

Honed Tubes are presicion tubes with smooth inside , they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009 , EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose. IF you are looking for seamless cold drawn honed tubes or SRB tubes for hydraulic cylinder pipes or pneumatic cylinder tubes, please contact us without any hesitation.

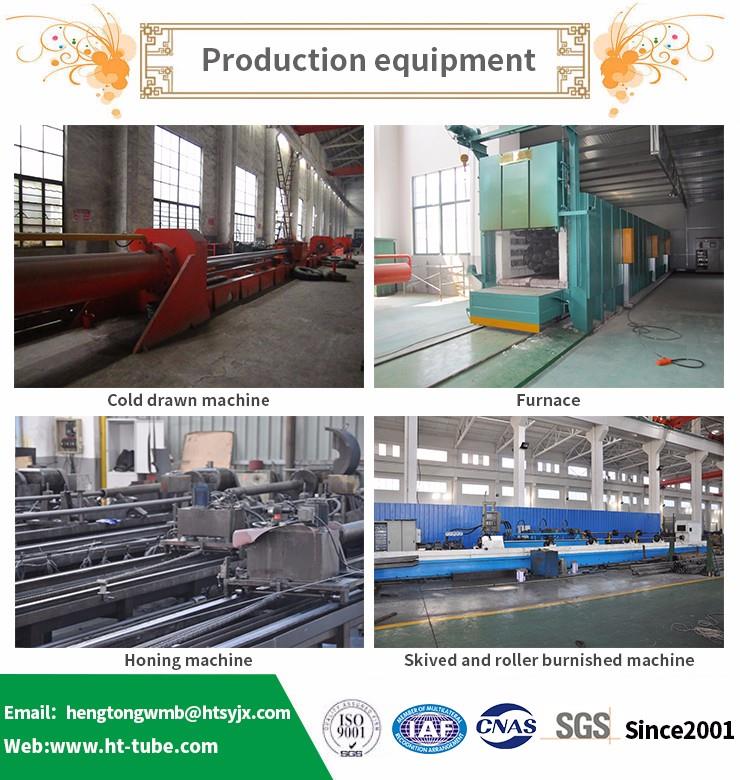

WUXI HENGTONG PETROLIC MACHINERY manufactures pre honed tubes, ready to hone tubes, honed tubes, skived and roller burnished tubes, chrome bar, piston rods and high-precision cold-drawn steel tubes, We are well-equipped with 300 ton, 150 ton, 65 ton, 20 ton of cold drawing machine,9 meters CNC boring machines, 20 sets honing machines.
Honed Pipe In Stock For Hydraulic detail
Application: producing of hydraulic/ pneumatic cylinders, pumps, motor shells, transmission shafts and transmission roller steel pipes.
Original: Jiangsu, China
Certification: ISO9001.
Material: SAE1020, 20#, ST45, CK45, ST52, E355
Payment term: TT, LC
Delivery date: usually 20 to 40 days.
Packing: packed in bundle, oiled inside, with caps on both ends.
Market: Middle East/ Africa/Asia/South America/Europe/North America
MOQ: Depends on exact size and material.
Large diameter honing tube pneumatic cylinder tube For pipes / tubes:
1. Material we have :
DIN2391 standard ST52, St45, EN10305 standard E355,E255, ASTM A106B grade, 16Mn, C20/20#, CK45
2. Chemical composition:
Material | C | Si | Mn | S(≤) | P(≤) | Cr | Ni | Mo | other |
A106B/ C20# | 0.17—0.23 | 0.17—0.37 | 0.35—0.65 | 0.035 | 0.035 | ≤0.25 | ≤0.30 | Cu≤0.25 | |
CK45# | 0.42—0.50 | 0.17—0.37 | 0.50—0.80 | 0.035 | 0.035 | ≤0.25 | ≤0.30 | Cu≤0.25 | |
Q345B | ≤0.20 | ≤0.55 | 1.00—1.60 | 0.040 | 0.040 | V:0.02-0.15 | Nb:0.015-0.06 | Ti:0.02-0.20 | Alt≥0.015 |
ST52 E355 16Mn | ≤0.20 | ≤0.55 | 1.00—1.60 | 0.045 | 0.045 | V:0.02-0.15 | Nb:0.015-0.06 | Ti:0.02-0.20 | 16Mn |
25Mn | 0.22—0.30 | 0.17—0.37 | 0.70—1.00 | 0.035 | 0.035 | ≤0.25 | ≤0.25 | ||
27SiMn | 0.24—0.32 | 1.10—1.40 | 1.10—1.40 | 0.030 | 0.030 | ||||
42SiMn | 0.39—0.45 | 1.10—1.40 | 1.10—1.40 | 0.030 | 0.030 | ||||
42CrMo | 0.38—0.45 | 0.17—0.37 | 0.50—0.80 | 0.025 | 0.025 | 0.90—1.20 | 0.15—0.25 |
3. Tube Accuracy :
Working method | Cylinder ID (mm) | Length (m) | Straightness (mm/m) | Tolerance on ID | Tolerance on WT | Roughness (μm) |
Cold drawn | 40-320 | ≤12M | 0.2-0.5 | / | ±5% | 0.8-1.6 |
Cold rolling | 30-100 | ≥12M | 0.2-0.5 | / | ±5% | 0.8-1.2 |
cold drawn-honed | 40-500 | 8M | 0.2-0.3 | H8-H9 | ±5% | 0.2-0.4 |
Cold drawn-skived | 40-400 | 9M | 0.2-0.3 | H8-H9 | ±5% | ≤0.2 |
Hole boring-honed | 320-400 | 8M | 0.2-0.3 | H7-H9 | ±8% | ≤0.4 |
Hole boring-skived | 320-400 | 9M | 0.2-0.3 | H8-H9 | ±8% | ≤0.2 |
FAQ
1.Q:What is your minimum order quantity, can you send me samples?
A: the Exact MOQ depends on your exact requirement. And sample is available.
2. Q:What is the delivery time?
A: Usually from 20 to 40 days.
3. Q: About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
A:The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
4. Q:Is your price competitive?
A: Only good quality we supply. Surely we will give you best factory price based onsuperior product and service.Please feel free to send us your detailed requirements, you would be satisfied with our service.
