Srb Seamless Tubes Introduction

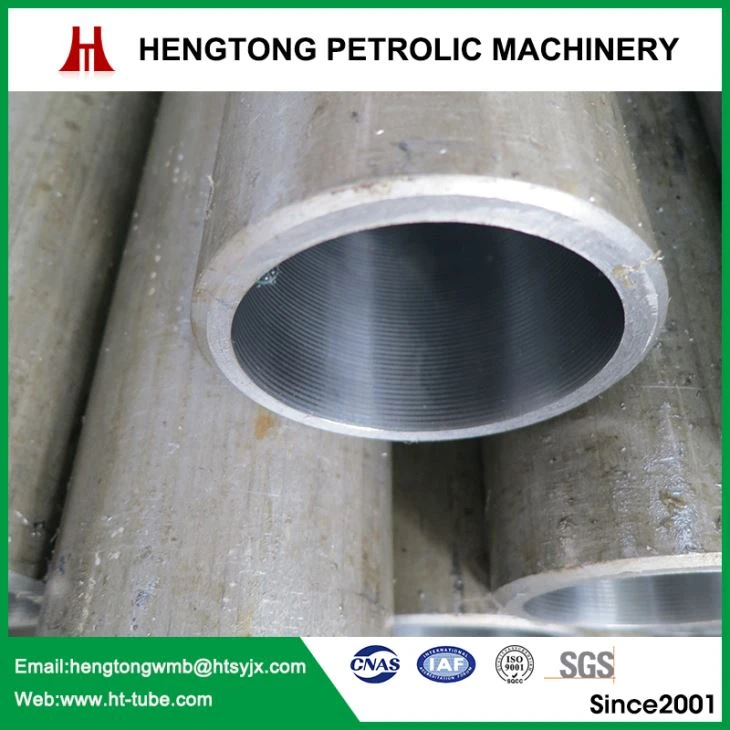

Skived and roller burnished tubes are presicion tubes with smooth inside , they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009 , EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose. IF you are looking for seamless cold drawn honed tubes or SRB tubes for hydraulic cylinder pipes or pneumatic cylinder tubes, please contact us without any hesitation.
Srb Seamless Tubes technical parameters and Details
Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.
Original: Jiangsu, China
Certification: ISO9001.
Material: SAE1020, 20#, ST45, CK45, ST52, E355
Payment term: TT, LC
Delivery date: usually 20 to 40 days.
Packing: packed in bundle, oiled inside, with caps on both ends.
Market: Middle East/ Africa/Asia/South America/Europe/North America
MOQ: Depends on exact size and material.
Size and Tolerance:
Working method | Cylinder ID （mm） | Length （m） | Straightness （mm/m） | Tolerance on ID | Tolerance on WT | Roughness （μm） |
Cold drawn | 40-320 | ≤12M | 0.2-0.5 | / | ±5% | 0.8-1.6 |
Cold rolling | 30-100 | ≥12M | 0.2-0.5 | / | ±5% | 0.8-1.2 |
cold drawn- honed | 40-500 | 8M | 0.2-0.3 | H8-H9 | ±5% | 0.2-0.8 |
Cold drawn-skived | 40-400 | 7M | 0.2-0.3 | H8-H9 | ±5% | ≤0.4 |
Deep hole boring- honed | 320-400 | 8M | 0.2-0.3 | H7-H9 | ±8% | ≤0.8 |
Deep hole boring- skived | 320-400 | 7M | 0.2-0.3 | H8-H9 | ±8% | ≤0.4 |
Skived and roller burnished tubes characteristics
1. The inside tolerance could up to H8.
2. Honing Inside roughness could reach to Ra 0.4um. Skiving inside could reach to Ra 0.2 um.
3. ID size from 50 to 280mm, OD size from 60 to 370mm, totally has more than 200 sizes.
4. Length could be fixed length of random length.
5. Inside chrome plated is for optional.
Experience and markets
Our factory has more than 20years working experiences on researching and selling. Products are well sailed all over the world, got many compliments from customers.
After-sales service:
1. Where to buy our products for one year warranty and life long maintenance.
2. 24-hour telephone service.
3. A large stock of components and parts, easily-worn parts.
FAQ
1. Q:Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, and we have builded up our company since 2006.
2. Q:How can i get to your factory?
A:Our factory is near shanghai Airport, and then you could take fast train from Shanghai to Wuxi Station.
3. Q:If i will need to stay in your place for few days, is that possible to book the hotel for me?
A:It’s always my pleasure, hotel booking service is available.
4. Q:What is your minimum order quantity, can you send me samples?
A: the Exact MOQ depends on your exact requirement. And sample is available.
5. Q:What is the delivery time?
A: Usually from 20 to 40 days.
