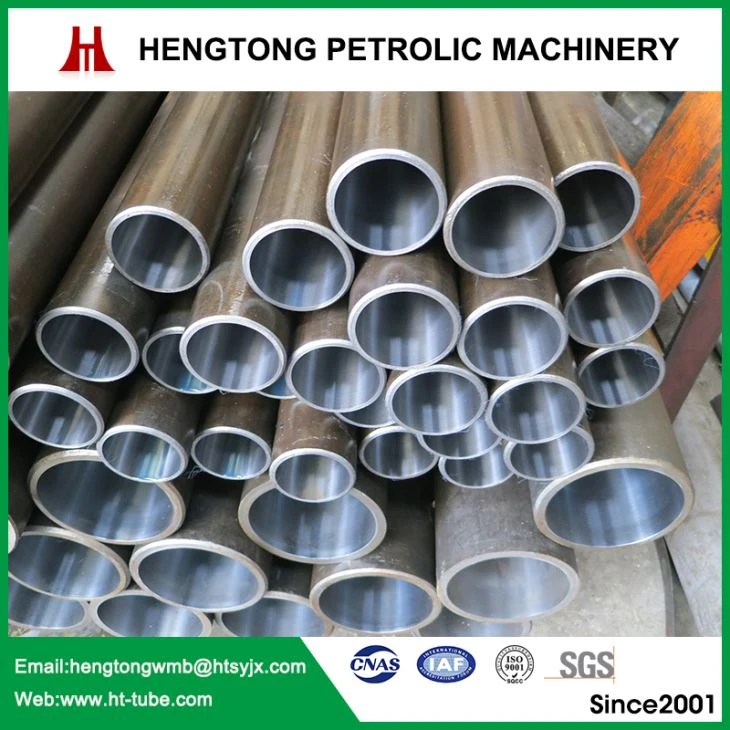

Hydraulic Cylinder Pipes introduction
WUXI HENGTONG PETROLIC MACHINERY has two factories of 40000 square meters and totally 150 employees manufactures pre honed tubes, ready to hone tubes, honed tubes, skived and roller burnished tubes, chrome bar, piston rods and high-precision cold-drawn steel tubes, Honed Tubes are presicion tubes with smooth inside , they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009 , EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose.
Hydraulic Cylinder Pipe detail
Application: producing of hydraulic/ pneumatic cylinders, pumps, motor shells, transmission shafts and transmission roller steel pipes.
Original: Jiangsu, China
Certification: ISO9001.
Material: SAE1020, 20#, ST45, CK45, ST52, E355
Payment term: TT, LC
Delivery date: usually 20 to 40 days.
Packing: packed in bundle, oiled inside, with caps on both ends.
Market: Middle East/ Africa/Asia/South America/Europe/North America
MOQ: Depends on exact size and material.
Size and Tolerance:
Large diameter honing tube pneumatic cylinder tube For pipes / tubes:
1. Material we have :
DIN2391 standard ST52, St45, EN10305 standard E355,E255, ASTM A106B grade, 16Mn, C20/20#, CK45
2. Chemical composition:
Material | C | Si | Mn | S(≤) | P(≤) | Cr | Ni | Mo | other |
A106B/ C20# | 0.17—0.23 | 0.17—0.37 | 0.35—0.65 | 0.035 | 0.035 | ≤0.25 | ≤0.30 | Cu≤0.25 | |
CK45# | 0.42—0.50 | 0.17—0.37 | 0.50—0.80 | 0.035 | 0.035 | ≤0.25 | ≤0.30 | Cu≤0.25 | |
Q345B | ≤0.20 | ≤0.55 | 1.00—1.60 | 0.040 | 0.040 | V:0.02-0.15 | Nb:0.015-0.06 | Ti:0.02-0.20 | Alt≥0.015 |
ST52 E355 16Mn | ≤0.20 | ≤0.55 | 1.00—1.60 | 0.045 | 0.045 | V:0.02-0.15 | Nb:0.015-0.06 | Ti:0.02-0.20 | 16Mn |
25Mn | 0.22—0.30 | 0.17—0.37 | 0.70—1.00 | 0.035 | 0.035 | ≤0.25 | ≤0.25 | ||
27SiMn | 0.24—0.32 | 1.10—1.40 | 1.10—1.40 | 0.030 | 0.030 | ||||
42SiMn | 0.39—0.45 | 1.10—1.40 | 1.10—1.40 | 0.030 | 0.030 | ||||
42CrMo | 0.38—0.45 | 0.17—0.37 | 0.50—0.80 | 0.025 | 0.025 | 0.90—1.20 | 0.15—0.25 |
3. Tube Accuracy :
Working method | Cylinder ID (mm) | Length (m) | Straightness (mm/m) | Tolerance on ID | Tolerance on WT | Roughness (μm) |
Cold drawn | 40-320 | ≤12M | 0.2-0.5 | / | ±5% | 0.8-1.6 |
Cold rolling | 30-100 | ≥12M | 0.2-0.5 | / | ±5% | 0.8-1.2 |
cold drawn-honed | 40-500 | 8M | 0.2-0.3 | H8-H9 | ±5% | 0.2-0.4 |
Cold drawn-skived | 40-400 | 9M | 0.2-0.3 | H8-H9 | ±5% | ≤0.2 |
Hole boring-honed | 320-400 | 8M | 0.2-0.3 | H7-H9 | ±8% | ≤0.4 |
Hole boring-skived | 320-400 | 9M | 0.2-0.3 | H8-H9 | ±8% | ≤0.2 |
4. Mechanical property:
Final Supply | Cold drawn finished | Cold drawn and stress-relieved | Hardness HB | |||
Parameters | Tensile Strength | Elongation | Tensile Strength | Yield Strength | Elongation | |
A106B/ C20 / 20# | ≥550 | ≥8 | ≥520 | ≥470 | ≥12 | 175 |
45#(CK45) | ≥650 | ≥5 | / | / | / | / |
16Mn(ST52,E355) | ≥640 | ≥5 | ≥600 | ≥520 | ≥15 | 190 |
25Mn | ≥640 | ≥5 | ≥600 | ≥510 | ≥15 | 195 |
27SiMn | ≥840 | ≥5 | ≥800 | ≥720 | ≥10 | 230 |
Our Advantage
1. We has two factories of 40000 square meters and totally 150 employees to promise the Honed Tubes In Stock best quality control;
2. According to the cylinder pressure and inside diameter size ,different hydraulic cylinder honed tube Would be choosed ;
3. Our motivation is --- customers’ satisfaction smile;
4. Our believing is --- pay attention to every detail;
5. Our wish is ----perfect co-operation.
IF you are looking for seamless cold drawn honed tubes or SRB tubes for hydraulic cylinder pipes or pneumatic cylinder tubes, please contact us without any hesitation.
