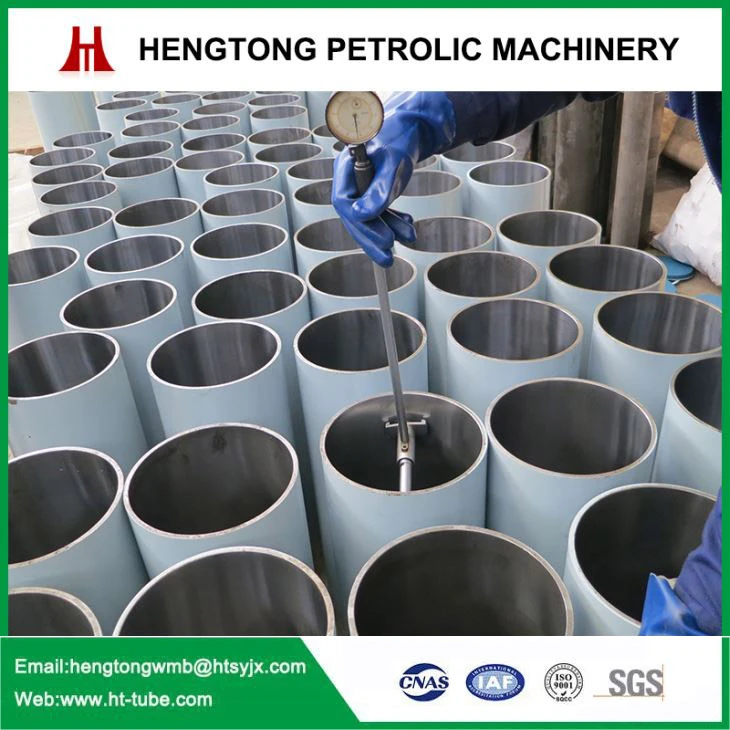

Pneumatic Cylinder Tubes

Pneumatic Cylinder Tubes i ntroduction Honed Tubes are presicion tubes with smooth inside , they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for...

Inquiry

  • Product Details

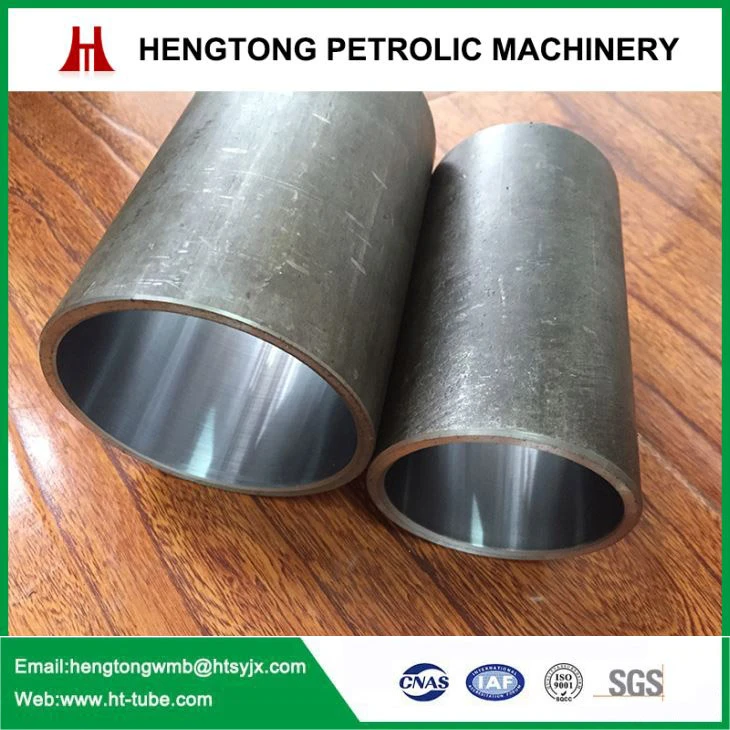

Pneumatic Cylinder Tubes introduction

Honed Tubes are presicion tubes with smooth inside , they also could be skived and burnished pipe. Tubes or pipes inside tolerance could be H10, H9 or H8. Outside tolerance, wall thickness tolerance are produced according to seamless cold drawn tubes for precision application standard GB/T3639-2009 , EN10305 or DIN2391 standard. Material SAE1020, 20#, ST45, CK45, ST52, E355 tubes and so on for you to choose. IF you are looking for seamless cold drawn honed tubes or SRB tubes for hydraulic cylinder pipes or pneumatic cylinder tubes, please contact us without any hesitation.

Tubes for Pneumatic Cylinder detail

Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.

Original: Jiangsu, China

Certification: ISO9001.

Material: SAE1020, 20#, ST45, CK45, ST52, E355

Payment term: TT, LC

Delivery date: usually 20 to 40 days.

Packing: packed in bundle, oiled inside, with caps on both ends.

Market: Middle East/ Africa/Asia/South America/Europe/North America

MOQ:  Depends on exact size and material.

Size and Tolerance:

Working

method

Cylinder ID (mm)

Length

(m)

Straightness

(mm/m)

Tolerance

on ID

Tolerance

on WT

Roughness

(μm)

Cold drawn

40-320

≤12M

0.2-0.5

/

±5%

0.8-1.6

Cold rolling

30-100

≥12M

0.2-0.5

/

±5%

0.8-1.2

cold drawn-

honed

40-500

8M

0.2-0.3

H8-H9

±5%

0.2-0.8

Cold drawn-skived

40-400

7M

0.2-0.3

H8-H9

±5%

≤0.4

Deep hole

boring- honed

320-400

8M

0.2-0.3

H7-H9

±8%

≤0.8

Deep hole

boring- skived

320-400

7M

0.2-0.3

H8-H9

±8%

≤0.4

Large diameter honing tube pneumatic cylinder tube For pipes / tubes:

1. Material we have :

DIN2391 standard ST52, St45,  EN10305 standard E355,E255, ASTM A106B grade, 16Mn, C20/20#, CK45

2. Chemical composition:

Material

C

Si

Mn

S(≤)

P(≤)

Cr

Ni

Mo

other

A106B/ C20#

0.17—0.23

0.17—0.37

0.35—0.65

0.035

0.035

≤0.25

≤0.30


Cu≤0.25

CK45#

0.42—0.50

0.17—0.37

0.50—0.80

0.035

0.035

≤0.25

≤0.30


Cu≤0.25

Q345B

≤0.20

≤0.55

1.00—1.60

0.040

0.040

V:0.02-0.15

Nb:0.015-0.06

Ti:0.02-0.20

Alt≥0.015

ST52

E355

16Mn

≤0.20

≤0.55

1.00—1.60

0.045

0.045

V:0.02-0.15

Nb:0.015-0.06

Ti:0.02-0.20

16Mn

25Mn

0.22—0.30

0.17—0.37

0.70—1.00

0.035

0.035

≤0.25

≤0.25



27SiMn

0.24—0.32

1.10—1.40

1.10—1.40

0.030

0.030





42SiMn

0.39—0.45

1.10—1.40

1.10—1.40

0.030

0.030





42CrMo

0.38—0.45

0.17—0.37

0.50—0.80

0.025

0.025

0.90—1.20


0.15—0.25


Packaging & Delivery

Packaging Details

PE Bag, PE Film, Paper Craft, Cartons, Wooden/Plastic Pallet, Wooden Cases, other Client Customized Packing Available

Delivery Time

Usually from 20 to 40 days

Packaging & Delivery.jpg


Please feel free to send us your detailed requirements, you would be satisfied with our service.
