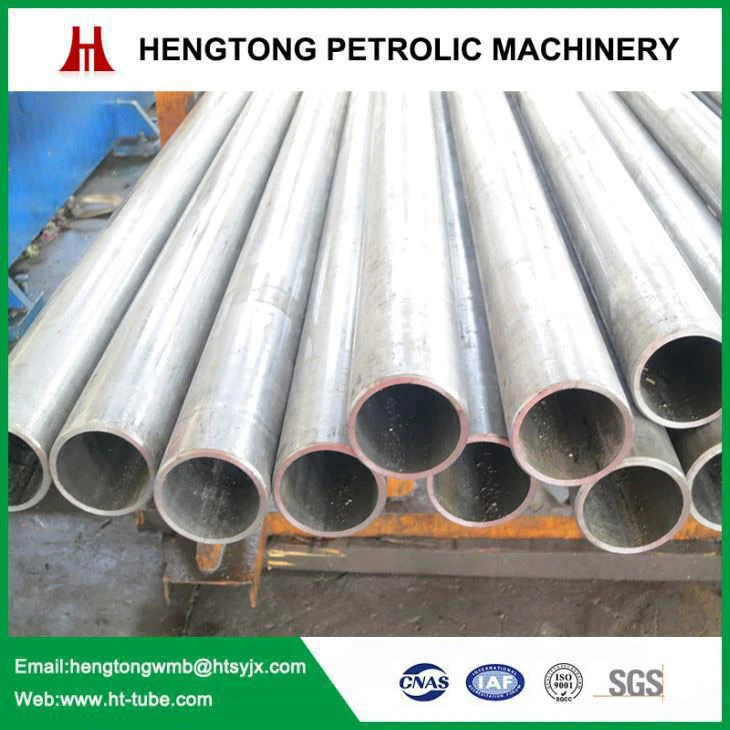

Seamless Cold Drawn

Seamless Cold Drawn

Seamless Cold Drawn I ntroduction WUXI HENGTONG PETROLIC MACHINERY manufactures Seamless Cold Drawn, ready to hone tubes, honed tubes, skived and roller burnished tubes, chrome bar, piston rods and high-precision cold-drawn steel tubes, We are well-equipped with 300 ton, 150 ton, 65 ton, 20 ton...

Inquiry

  • Product Details

Seamless Cold Drawn Introduction

WUXI HENGTONG PETROLIC MACHINERY manufactures Seamless Cold Drawn, ready to hone tubes, honed tubes, skived and roller burnished tubes, chrome bar, piston rods and high-precision cold-drawn steel tubes, We are well-equipped with 300 ton, 150 ton, 65 ton, 20 ton of cold drawing machine,9 meters CNC boring machines, 20 sets honing machines , one set furnace and advanced quality testing equipment, which combine cold drawn, cold-rolled, heat treatment and traditional machining process.

Seamless Cold Drawn Technical Parameters and Details

Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.

Original: Jiangsu, China

Certification: ISO9001.

Material: SAE1020, 20#, ST45, CK45, ST52, E355

Payment term: TT, LC

Delivery date: usually 20 to 40 days.

Packing: packed in bundle, with caps on both ends.

Market: Middle East/ Africa/Asia/South America/Europe/North America

MOQ:  Depends on exact size and material.

Size and Tolerance:

Working

method

Cylinder ID (mm)

Length

(m)

Straightness

(mm/m)

Tolerance

on ID

Tolerance

on WT

Roughness

(μm)

Cold drawn

40-320

≤12M

0.2-0.5

/

±5%

0.8-1.6

Cold rolling

30-100

≥12M

0.2-0.5

/

±5%

0.8-1.2

cold drawn-

honed

40-500

8M

0.2-0.3

H8-H9

±5%

0.2-0.8

Cold drawn-skived

40-400

7M

0.2-0.3

H8-H9

±5%

≤0.4

Deep hole

boring- honed

320-400

8M

0.2-0.3

H7-H9

±8%

≤0.8

Deep hole

boring- skived

320-400

7M

0.2-0.3

H8-H9

±8%

≤0.4

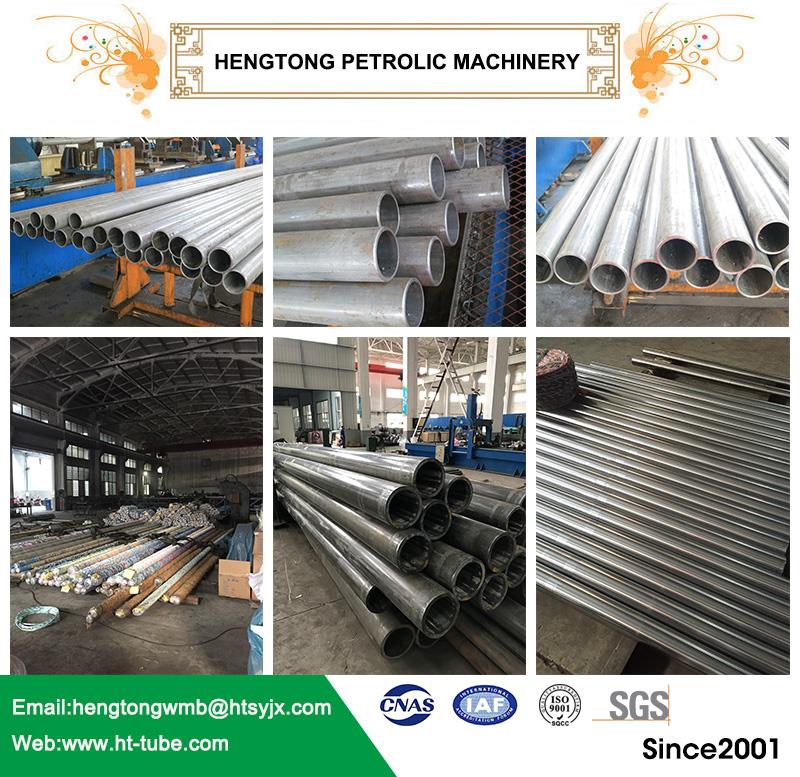

Hydraulic Cold Drawn Tube.jpg

Quality control

1. We only buy raw material from famous tube factory, and Checking raw material quality before production.

2. We check the tube ID tolerance, OD tolerance and surface after cold drawn one by one.

After-sales service:
1. Where to buy our products for one year warranty and life long maintenance.
2. 24-hour telephone service.
3. A large stock of components and parts, easily-worn parts.

Our Advantage

1. We has two factories of 40000 square meters and totally 150 employees to promise the Honed Tubes In Stock best quality control;

2. According to the cylinder pressure and inside diameter size ,different hydraulic cylinder honed tube Would be choosed ;

3. Our motivation is --- customers’ satisfaction smile;

4. Our believing is --- pay attention to every detail;

5. Our wish is ----perfect co-operation.
