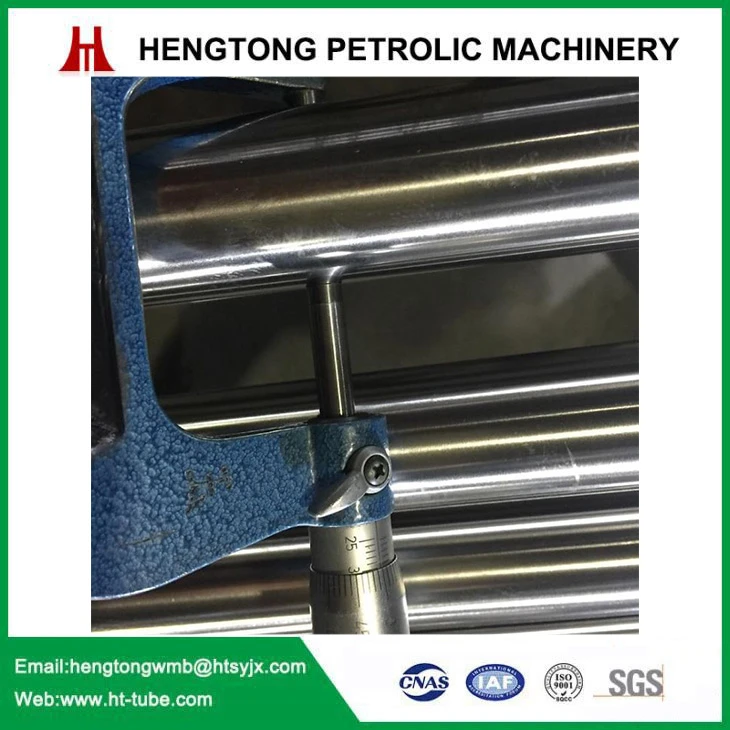

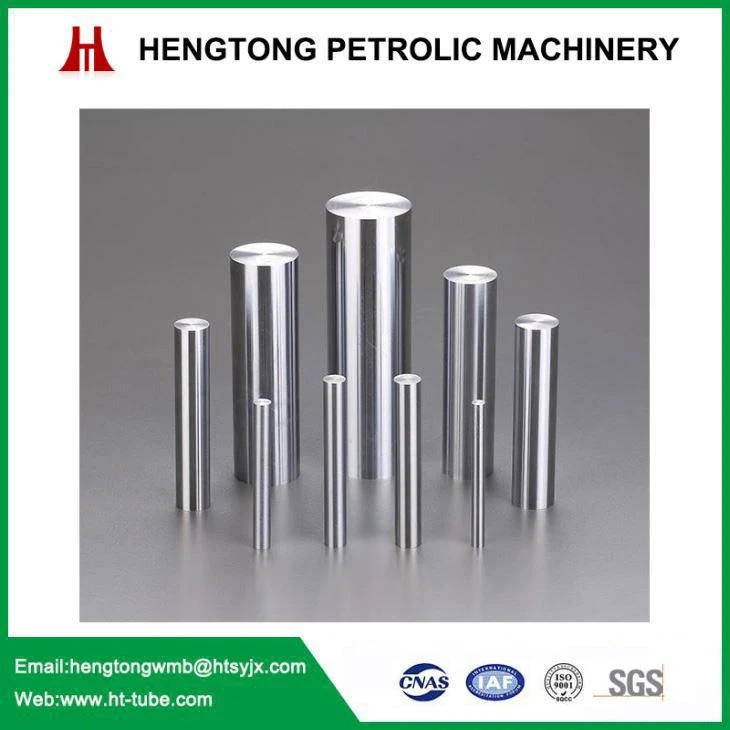

Piston Rod Chrome Bar

Piston Rod Chrome Bar Introduction Chrome plated bars can be divided into standard bar, induction bar and tempered & quenched bar. Surface of bar goes through special grinding and hard chrome plating process, and then mirror polishing. They always work together with precision tubes. Piston...

Inquiry

  • Product Details

Piston Rod Chrome Bar Introduction

Chrome plated bars can be divided into standard bar, induction bar and tempered & quenched bar. Surface of bar goes through special grinding and hard chrome plating process, and then mirror polishing. They always work together with precision tubes.

Piston Rod Chrome Bar technical parameters and Details

Application: hydraulic cylinder, pneumatic cylinder, oil cylinder, telescopic cylinder.

Original: Jiangsu, China

Certification: ISO9001.

Material: CK45, ST52, E355, 42CrMo4

Payment term: TT, LC

Delivery date: usually 20 to 40 days.

Packing: each packed in peper sleeve, and then in bundle.

Market: Middle East/ Africa/Asia/South America/Europe/North America

MOQ:  Depends on exact size and material.

Mechanical Properties:

Material

T.S  (MPA)

Y.S  (MPA)

Elongation %

CHARPY

CONDITION

CK45

≥610

≥355

≥15

>41J

NORMALIZE

CK45

≥800

≥630

≥20

>41J

Q + T

ST52

≥500

≥355

≥22


NORMALIZE

20MnV6

≥750

≥590

≥12

>40J

NORMALIZE

42CrMo4

≥980

≥850

≥14

>47J

Q + T

40Cr

≥1000

≥800

≥10


Q + T

Production process

Raw material –peeling – straightening – quenched and tempered – cutting – grinding –straightening – grinding – polishing – chrome plating – polishing - oiled plated - packing

Production Process(001).jpg

Our Advantage

1. We has two factories of 40000 square meters and totally 150 employees to promise the Honed Tubes In Stock best quality control;

2. According to the cylinder pressure and inside diameter size ,different hydraulic cylinder honed tube Would be choosed ;

3. Our motivation is --- customers’ satisfaction smile;

4. Our believing is --- pay attention to every detail;

5. Our wish is ----perfect co-operation.

FAQ

1. Q:If i will need to stay in your place for few days, is that possible to book the hotel for me?

A:It’s always my pleasure, hotel booking service is available.

2. Q:What is your minimum order quantity, can you send me samples?

A: the Exact MOQ depends on your exact requirement. And sample is available.

3. Q:Is your price competitive?

A: Only good quality  we supply. Surely we will give you best factory price based on

superior product and service.

4. Q: Do you have the products in stock?

A:  We have standard sizes in stock.

5. Q: Can I mix different models in one container?

A: Yes, of course, but one container we accept 10 sizes at most.

Hot Tags: piston rod chrome bar, China, manufacturers, suppliers, factory, price
